| Product Name: | Horizontal Autoclave | Sterilization Temperature: | 121ºC / 125ºC / 134ºC / 136ºC |
|---|---|---|---|
| Power Consumption: | 4KVA | Temperature Probe: | Pt 100 |
| Display: | 5.7" Color Touch Screen | Printer: | Standard Thermal Printer |
| Chamber Dimensions: | 680*1180*1500mm | External Dimensions: | 2200*2000*1910mm |
| High Light: | horizontal sterilizer,Sterilization Cycle Autoclave |
||

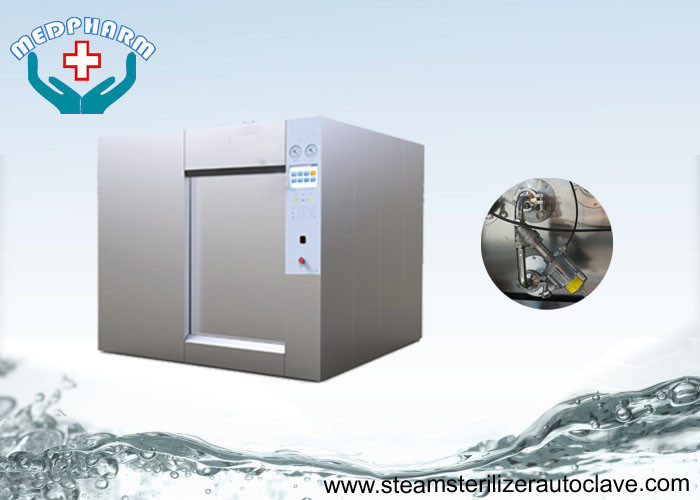

Large Capacity Horizontal Autoclaves With Pneumatic Operated Sliding Door
Specifications
| Model | MD-1.2Y |
| Chamber Capacity | 1200 liters |
| Control System | PLC |
| Display | 640x480 Pixels, 5.7" Color Touch Screen |
| Preset Programs | 6 Standard |
| Memories For Custom Programs | 12 |
| Test Programs | Vacuum Leakage Test / Bowie & Dick |
| Temperature probe | Pt 100 |
| Door mechanism | Pneumatically operated |
| Sterilization Temperatures | 121ºC / 125ºC / 134ºC / 136ºC |
| Chamber Material | Stainless steel 304 |
| Jacket Material | Stainless steel 304 |
| Facing material | Stainless steel AISI 304 |
| Printer | Standard thermal printer |
| Chamber Dimensions (WxDxH) mm | 680*1180*1500mm |
| External Dimensions (WxDxH) mm | 2200*2000*1910mm |
| Net Weight | 1330kg |
| Power Consumption | 4KVA |
| Power Supply | AC380V, 50Hz 3-Phase+N+E |
Description
• Chamber, steam jacket, door and steam generator made of 304 stainless steel
• Conform to Pneumatically controlled door opening with safety system
• Steam driven one piece chamber gasket made of silicon
• High capacity, low noise water ring vacuum pump for vacuum function
• High quality valves, sensors and transmitters for a problem free and safe operation
• Pneumatic valves in the steam lines
• Innovative AIR-COOLING system for low water and energy consumption
• PLC control system with 5.7" colorful touch screen
• Wide screen allows monitoring all related information regarding sterilization cycle
• 6 preset programs, 20 custom made programs
• Two test programs: Bowie & Dick and vacuum leakage
• Independent control system besides the main control system to record the data
• Comprehensive self-diagnostic system for possible system malfunctions
• Service menu to detect the problem in case of a failure
• Thermal printer offered as standard
• Optional RS 232 port and software
Applications
· Medical range: implants, metal or ceramic components, instruments
· Pharma range: filled syringes, solutions in flexible pouches, preparations for injections
· Hospitals: implementation of specific sets, re-processing instruments
Competitive Advantage
· 20 years of experience with steam sterilization
· Process suitable for small batches / series
· Very fast: about an hour to a solid cycle, two to three hours for a liquid cycle
· Fewer problems of biocompatibility if the materials withstand heat (as the only sterilizing
agent is the water in vapor form)
· Very versatile, sterilizes simple products, whole baskets of surgical instruments, liquids.
