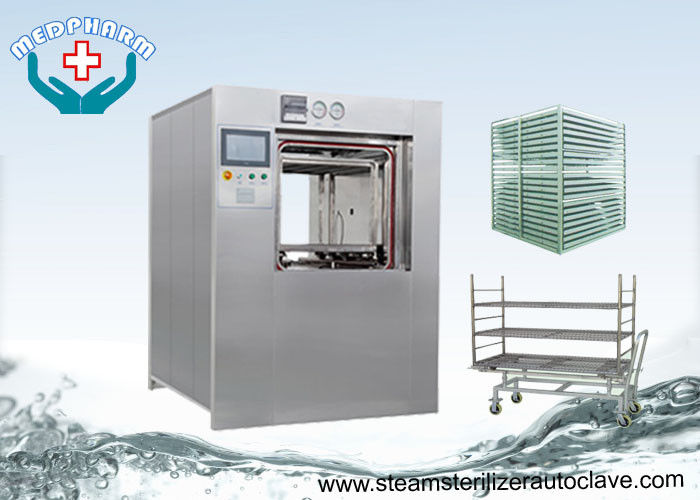

360 Liter Double Door Hospital Steam Autoclaves With Post Vacuum Drying Function

360 Liter Double Door Hospital Steam Autoclaves With Post Vacuum Drying Function
360 Liter Double Door Hospital Steam Autoclaves With Post Vacuum Drying Function

Large Image :  360 Liter Double Door Hospital Steam Autoclaves With Post Vacuum Drying Function

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO
Model Number: MD-0.36V
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Door Type: Vertical Sliding Door Application: Medical Centers
Chamber Volume: 360 Liter Steam Gene: 304 Stainless Steel
Touch Screen: Easy To Use And Handle Chamber: Fine Polishing
High Light:

medical waste sterilizer

,

medical waste treatment equipment



360 Liter Double Door Hospital Steam Autoclaves With Post Vacuum Drying Function



Applications



The MD-0.36V is designed for steam sterilization of surgical instruments, textiles, clothes, rubber  items, metal, plastic and glassware. They are used in hospitals, including CSSD, operating rooms.



Features



  • Automatic powered vertical sliding door
  • Accurate pressure and temperature sensors
  • Easy to use and handle touch screen
  • Validated cycles for typical hospitalize loads
  • Safety-stop system for door movement in case of obstruction
  • Chamber fine polishing
  • Equipment fully built in stainless steel steam generator
  • Full jacket and chamber surface heating
  • Microprocessor control



Specifications



Model

MD-0.36V

Door number

Double door

Door type

Vertical sliding door

Chamber volume

360 liter

Chamber Size

600*600*840mm

Overall Size

1200*2000*1180mm

Net Weight

850kg

Steam

22Kg/cycle

Water

35Kg/cycle

Power(KVA)

2KVA+18KW for steam generator

Sterilization temperature rage

105°C to 134°C

Sterilization time rage

 0---99 minutes

Vacuum times

 0---9 times

Drying time

 0---99 minutes

Test program mes

 Bowie & Dick, vacuum test

Working programs

Multiple customizable programs for textiles, instruments,

rubbers, culture medium and liquids in unsealed bottles.



Materials Of Construction



1. Chamber Options

     304L Stainless Steel,316L Stainless Steel

2. Jacket Options

     Carbon Steel, 304L Stainless Steel, 316L Stainless Steel

3. Steam Piping Options

     304L Stainless Steel,316L Stainless Steel



Accessories



  • Loading equipment
  • Baskets, trays and containers
  • Pass-through systems
  • Steam generation systems
  • Water purification systems
  • Cycle data archiving
  • Air compressor
  • Bar code reader system



Options



  • Report system about errors and faults of the cycle
  • Validation IQ/OQ
  • A slot for the connection with an external PC for data transfer
  • HEPA additional exhaust air filter
  • Filter for outgoing condensate from the chamber
  • Additional temperature sensor in chamber for liquids sterilizing
  • All pipes and fittings are made of stainless steel  AISI 316L
  • Quick cool-down system consisted of water cooler and air fan mounted in sterilizing  chamber



360 Liter Double Door Hospital Steam Autoclaves With Post Vacuum Drying Function 0

360 Liter Double Door Hospital Steam Autoclaves With Post Vacuum Drying Function 1



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
