ISO Medical Washer Disinfector For Automatic Washing / Disinfecting / Drying

ISO Medical Washer Disinfector For Automatic Washing / Disinfecting / Drying
ISO Medical Washer Disinfector For Automatic Washing / Disinfecting / Drying

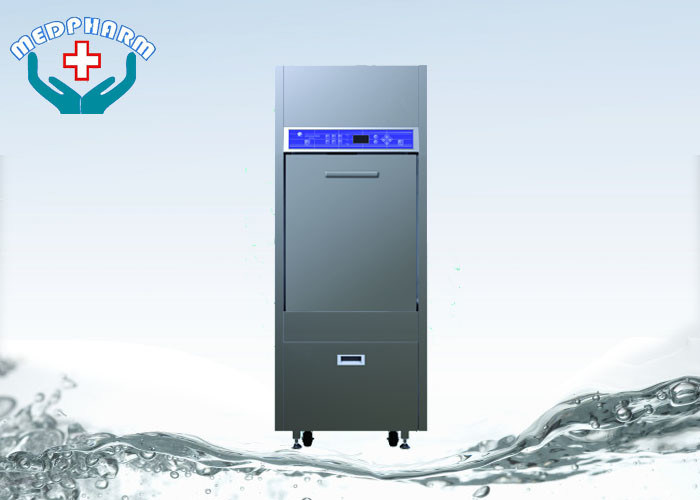

Large Image :  ISO Medical Washer Disinfector For Automatic Washing / Disinfecting / Drying

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: ISO
Model Number: QPQ320
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: According to size
Packaging Details: Plywood box
Delivery Time: 20 work days
Detailed Product Description
Material: 304 Stainless Steel Door Sealing: Hollow Steel Glass
Automatic Detergent Filling System: Yes Spraying System: Yes
Drying System: Yes Fingerprint: With
High Light:

washer disinfector machine

,

instrument washer disinfector

MODEL: QPQ320



Two doors system floor standing thermo-disinfector, electrically operated,

for treatment of instruments, glassware for washing, disinfections,

drying and validation for medical and laboratory items. Fully microprocessor controlled.



  1. Power AC380V 50Hz 17KW or as per requirement.
  2. Thermal disinfection tem: Ambient tem~98℃
  3. Water pressure: 0.10MPa~0.80Mpa
  4. Water flow: 25L/min
  5. Water consumption: 15L/phrase
  6. Tem increase: About 10.5 ℃/min
  7. Environment: Humidity:31℃ <80%

Ambient Tem:5~40℃

  1. Working Noise: ≤60 dB
  2. Procedure preset: 6 programs
  3. Power of the heater: 15KW (water heating power)

3KW (air heating power)

  1. Chamber dimension: 790x640x640(mm)(LxWxH)
  2. Trolley dimension: four layers

600x570x570(mm)(LxWxH)

  1. Instruments baskets: 8 units
  2. Basket dimension: 60(H)× 480(W)×285mm (D)
  3. Overall size: 1860(H)×685(W)×700mm (D)
  4. Package size 2000(H)×685(W)×700mm (D)
  5. Net Weight 150Kg
  6. Gross weight 210kg
  7. Body material:304 s.s material, heat and nosie insulation
  8. Chamber material: 316 stainless steel





Chief features:

Pre-cleaning, thermal disinfection, chemical disinfection, rust removal, rinse, dry ,clean agent and oil agent function;

Imported circulating pump;

Fast cleaning time, fast cleaning: 18 minutes. Chemical disinfection time: 75 minutes.

Micro computer control;

Automatic malfunction diagnosis;

Working procedure preset

Automatic printer: automatic print: cleaning time, rinse time, thermal disinfection,

dry time, cleaning temperature, rinse temperature, thermal disinfection temperature, dry temperature, A0, enzyme amount, oil amount etc.

Working procedure: 6 programs and 20 programs can set up.

Double door, manual; tempered glass

Heating : built-in electricity heater.

Equipped with two dosing pumps of chemical products;

Four level water filtering system;

Water connection: cold ,warm, demineralise.

Checking of chemical products quantity, with minimum level alarm.

Password programming security.



Features
●This machine adopts the chip design of Texas Instruments of the United States. It has diverse programs, high degree of intelligence, and the main parameters of all its electrical components can be adjusted and set in order to meet the requirements of different environment’s and different customers’.
P1 is for the fast enzyme clean, time is 21min. It can be adjusted for separate wash for 5min.
P2 is for the standard clean, time is 57min. It can be adjusted to 35min.
P3 is for the heat disinfection clean (90 ℃ -93 ℃), time is 69min. It can be adjusted to 50min, and can clean and disinfect high temperature resistant equipment; the feature is cleaning first and then disinfecting.
P4 is for chemical disinfection, time is 80min. It can be adjusted to 50min. It can clean and disinfect hoses and other materials which are not high temperature resistant.
P5 is for the fast high-temperature disinfection, time is 61min. It can be adjusted to 30min and can clean and disinfect high temperature resistant equipment; the feature is disinfecting first then cleaning.
P6 is for separate drying procedure, the temperature is 70 ℃ -100 ℃, time is 30min. It can be adjusted to any temperature.
●There are 2 peristaltic pumps and they can be added to 5 at most. Cleaning solution and oil can be added automatically.
●The advanced technology of stainless steel inner tank and machine case make the machine not easy to wear and rust.
●The apparatus car is divided into four layers. The surgical instruments can be placed in eight baskets to clean; when cleaning larger surgical instruments, the one or two layers in the middle can be taken out.



ISO Medical Washer Disinfector For Automatic Washing / Disinfecting / Drying 0

ISO Medical Washer Disinfector For Automatic Washing / Disinfecting / Drying 1

ISO Medical Washer Disinfector For Automatic Washing / Disinfecting / Drying 2
