Product Details:
Payment & Shipping Terms:
|
| Door Type: | Double Door | Control System: | Micro Computer |
|---|---|---|---|
| Sterilization Medium: | Hydrogen Peroxide | Sterilization Temperature: | 35-55*C |
| Sterilization Recorder: | Yes | Application: | CSSD |
| Highlight: | sterilizing medical equipment,medical sterilization equipment |
||

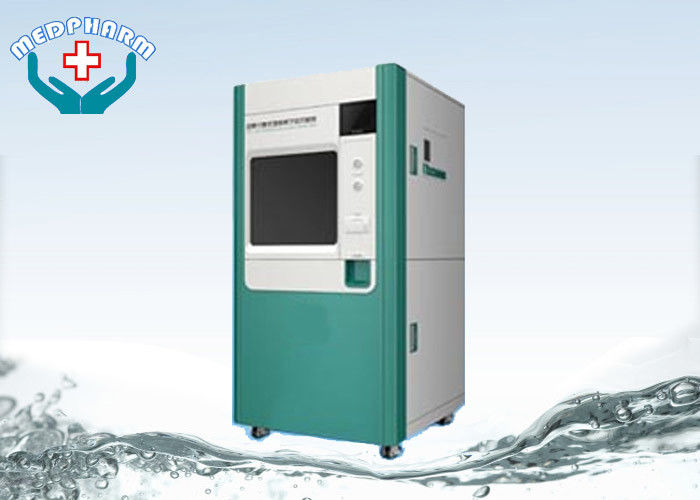

Double Door 200L Hydrogen Peroxide Low-Temperature Plasma Sterilizer
Product features
1. Exclusively adopt the high-accuracy hydrogen peroxide injection system
2,The exclusive purification technology of sterilizing agent, the concentration of which exceeds 95% after purification
3. Linear actuator overhead door equipped with infrared control security system
4. The imported original components are adopted as the core parts to secure low failure rate
5. The great user-friendly man-machine interaction interface can show the procedure parameters in the whole course and thus achieve convenient and flexible control
6. The sterilization records can be printed and stored in large capacity which can be transferred and stored in real time
7. Connected to single-phase 380V, which facilitates installation and use and requires no external pipelines or fanning treatment system
8. The products after sterilization are a small number of oxygen and water and are completely harmless to human body and the environment
9. The manufacturing technique used in the Chinese Attack Helicopter 10 is adopted for the sterilization warehouse
10. The sterilization craft does no harm to the instruments, which prolongs the service life of the instruments as well as lowers the maintenance costs
Application:
Applicable for sterilizing broad spectrum surgical instruments including metal, non-metal devices and wet-and-heat-sensitive instruments This product is not supposed to be put into paper, degreasing cotton or other products containing plant fiber Not applicable for sterilizing liquid or articles with high moisture content Not applicable for sterilizing powdery articles
Technical parameters
| Model No. | FPS-A-I |
| Door-Opening Mode | Double Door(Single Door Customizable) |
| Sterilization Warehouse Shape | Rectangle |
| Compartment Size ( Width x Height x Depth) | 550x 445x900mm |
| Compartment Capacity | 220L |
| Useable Capacity | 186L |
| Boundary Dimension ( Width x Height x Depth) | 932x1775x1098mm |
| Built-in Sterilization Procedures | Standard Procedures |
| Min Installation Space | 1500*1300mm |
| Min Maintenance Distance | 1000mm |
| Min Distance between Back Cover and Wall | 150mm |
| Installation Environment Temp. | 10~40℃ |
| Power Supply | 220V/50Hz |
| Power | 3.5KW |
| Weight | 400KG |
Cautions:
· The paper products and the absorbent cotton products which contain the vegetable fibers can not be put into this product.
· Unable to sterilize the liquid and the articles with high-moisture content
· Unable to sterilize the powdery objects
