Product Details:
Payment & Shipping Terms:
|
| Door: | Manual Door | Chamber Material: | 304 Stainless Steel |
|---|---|---|---|
| Dimension: | 866*645*1800 Mm | Chamber: | 643×1040×640(mm)(LxWxH) |
| Capacity: | 360 Liter | Application: | Medical Clinics & OR |
| High Light: | washer disinfector machine,dental washer disinfector |
||

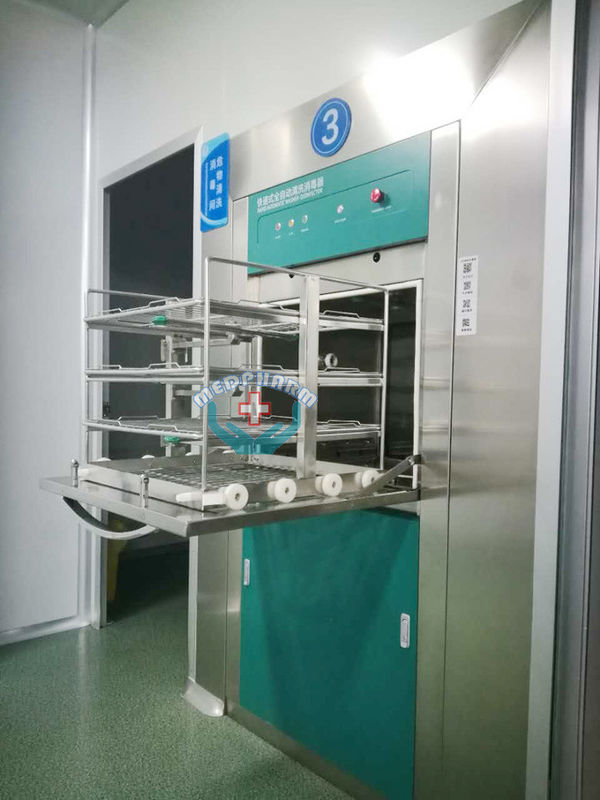

Wall-mounted Washer Disinfectors for the CSSD - Medical Clinics & OR
Key feature:
-A strong centrifugal circulating HANNING pump provides 800ml/min high flow rate combined with effective spray pressure.
-Two standard automatic liquid dispensers inject programmed amounts of 2 kinds of 4L chemical additive directly into the sump tank during processing
-A 3KW high-velocity brushless fans, 6KW heating coils, PTC electric heaters and HEPA 13 filter take in fresh air from clean side and heat circulates 110°C over the load dry fast.
-Two water filters one placed in water inlet and one in the bottom of sump tank prolong the centrifugal circulating pump
-Two temperature sensors one in the sump tank bottom and one in the air heating ensure the air disinfection and dry effect.
-6 preset programs,24 customized programs display on 7” colorful VEINVIEW touch screen facilitates user operation
-Visual and audible alarm when cycle complete
-With mist condensated collector and water is sent directly to drain.
Technical specification
| Model Name | RAQ-H-II |
| Dimensions | |
| Width/Depth/Height mm. | 866/645/1800 mm |
| Net Weight | 180 Kg |
| Gross Weight | 210 Kg |
| Basket Volume | 8 DIN baskets |
| Material | 304 stainless steel heating coils,chamber, plumbing ,door ,cover, shelf and trays, cold steel power coated frame |
| Connections | |
| Drain Pipe | Diam DN40 |
| Electrical Connection | 380 Vac 3 N+G / 50Hz |
| Total Power | 20 kW |
| Pump Power | 1.5 kW |
| Dryer blower | 210m3/h |
| Dryer heating | 6KW |
| Breather pipe chamber | Diam. DN50 |
| Demineralized Water Connection | Female DN 20 mm |
| Connections - Cold Water | |
| Hydraulic Connection Cold Water | Female DN 20 mm |
| Min. / Max. Pressure | 0.2Mpa/0.4Mpa |
| Min. / Max. Temperature | 10°C/20°C |
| Utillities | |
| Noise | 70 dBA |
| Min. / Max. Permitted Room Temperature | +5°C / +40°C |
Application:
The washer disinfectors is ideal for medical centers, dental practices and clinics. It marks the evolution of a flexible system for washing, disinfecting and drying of medical and laboratory items. The washer provides an excellent preparation for sterilization.
Wash cart
Laparoscopic Scissors Cassette—Unique cassette plugs into the
Tubular Instrument Wash Rack and provides injection ports for eight demountable Laparoscopic Scissors. Cleaning solutions are
forced through tubing to clean and disinfect instruments.
Anesthesia/Respiratory Wash Cart—Unique wash cart for processing temperature stable anesthesia hoses, masks, bellows, tubing and breathing bags. Cleaning solutions and drying air is forced into all items.
