High - Low Temperature And Humidity Chamber With Large Colour Touch Screen

China High - Low Temperature And Humidity Chamber With Large Colour Touch Screen supplier

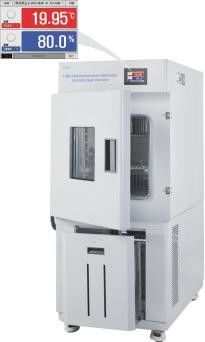

Large Image :  High - Low Temperature And Humidity Chamber With Large Colour Touch Screen

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE, ISO9001, UL
Model Number: BPHS Series, BPHJS Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: wood box
Delivery Time: 20 work days
Supply Ability: 10 unit per month
Contact Now
Detailed Product Description



High - Low Temperature And Humidity Chamber With Large Colour Touch Screen



High-low Temperature (Alternate) & Humidity Test Chamber

High - Low Temperature And Humidity Chamber With Large Colour Touch Screen Touch Screen Operation


High - Low Temperature And Humidity Chamber With Large Colour Touch Screen Automatic Temperature Control




Features



Humanized design



●New fluorine-free design.

●Dry and wet ball type or capacitance type multifunctional humidity controller, can be used for set multi periods programmable.

●High-precision temperature and humidity sensors, long life, easy to operate.

●Standard with a φ25mm or φ50mm test hole on the left side of the chamber.

●Internal water bath easy to be pulled out to add water.



Quality Assurance



●Unique air circulation system to ensure the temperature and humidity uniformly.

●Inner tark with SUS 304 stainless steed,mirror polished processing free loading and unloading shelf support for the easy cleansing of the box.

●Intelligent programmable controller.



Safety function



●Independent temperature-limited alarm system ensures experiments run safely.

●High temperature, low and over-temperature alarm function.

●Compressor over-heat and over-load protections, fan motor over- heat and water-lack protections.



Convenient data processing (option)



●RS485 or USB connector can connect computer to record and print the parameters and the variations of temperature.(option)



Programmable touch screen controller (option)



●Colorfull LCD touch screen controller, easy to observe and operation.

●Display current temperature and humidity curves.

●100 groups with 1000 period’s 999 circulations, max timing for each period is 99 hours 59 minutes.

●With screen lock function to avoid change the data or shut down by manual touch.

●With P.I.D automatic calculation function, it could correct the temperature and humidity conditions immediately.

●With RS-232 or RS-485 connector.

●It can monitor and control 9 sets equipments at the same time if install the professional software in computer.

●Real-time analysis and store the data by computer, it’s convenient to print the Excel documents or Word documents.



Specifications



Model

BPHS series High-low temperature &humidity test chamber

BPHJS series High-low temperature(alternate) &humidity test chamber

BPHS-060A(B/C)

BPHJS-060A(B/C)

BPHS-120A(B/C)

BPHJS-120A(B/C)

BPHS-250A(B/C)

BPHJS-250A(B/C)

BPHS-500A(B/C)

BPHJS-500A(B/C)

Temperature Range A:-20℃ ~120℃ ; B:-40℃ ~120℃ ; C:-60℃ ~130℃
Temperature Stability ±0.5℃
Temperature ±2℃
Humidity Range 30~95%RH
Humidity Stability ±3%RH

Interior Dimension

(W×D×H,mm)

400×380×450

650×1040×1650

500×400×600

700×1040×1750

600×600×700

700×1160×1850

800×700×900

998×1020×1730

Electrical Requirement

A:AC380V 50Hz

B:AC380V 50Hz

C:AC380V 50Hz

A:AC380V 50Hz

B:AC380V 50Hz

C:AC380V 50Hz

A:AC380V 50Hz

B:AC380V 50Hz

C:AC380V 50Hz

A:AC380V 50Hz

B:AC380V 50Hz

C:AC380V 50Hz

Power Consumption 3750W/4150W/5250W 5950W/7050W/9300W 6000W/7100W/9300W 6650W/7850W/9800W



High - Low Temperature And Humidity Chamber With Large Colour Touch Screen High - Low Temperature And Humidity Chamber With Large Colour Touch Screen High - Low Temperature And Humidity Chamber With Large Colour Touch Screen High - Low Temperature And Humidity Chamber With Large Colour Touch Screen
