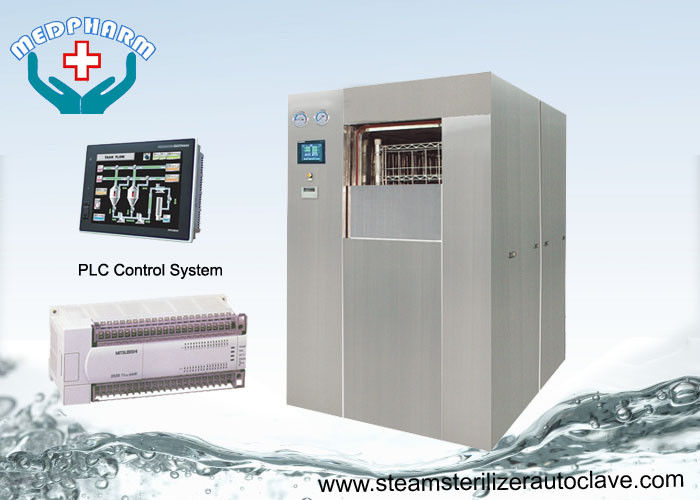

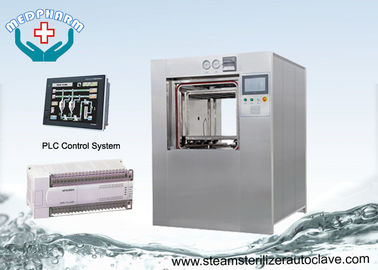

Vertical Sliding Door 100Liters Capacity Hospital CSSD Sterilizer With Micro Printer

China Vertical Sliding Door 100Liters Capacity Hospital CSSD Sterilizer With Micro Printer supplier
Vertical Sliding Door 100Liters Capacity Hospital CSSD Sterilizer With Micro Printer supplier Vertical Sliding Door 100Liters Capacity Hospital CSSD Sterilizer With Micro Printer supplier

Large Image :  Vertical Sliding Door 100Liters Capacity Hospital CSSD Sterilizer With Micro Printer

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-0.1V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 35 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Name: Hospital Sterilizer Volume: 100Liters
Door Type: Vertical Sliding Installation: Recessed Wall Or Floor Standing
Steam Generato: Built In With Stainless Steel Chamber Size: 400*400*700mm
Overall Size: 1000*1800*1040mm



Vertical Sliding Door 100Liters Capacity Hospital CSSD Sterilizer With Micro Printer



Main Parameters



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.10V

400*400*700

1000*1800*1040

650

14

15

2

MD-0.16V

400*400*1000

1000*1800*1340

700

16

20

2

MD-0.20V

400*400*1300

1000*1800*1640

750

18

25

2

MD-0.24V

600*600*670

1200*2000*1010

800

20

30

2

MD-0.30V

600*600*840

1200*2000*1180

850

22

35

2

MD-0.36V

600*600*1000

1200*2000*1340

900

25

40

2

MD-0.45V

600*600*1250

1200*2000*1590

980

27

50

2

MD-0.60V

600*600*1670

1200*2000*2010

1100

30

60

3



Benefit



- Unique non-stick door gasket

Specially formulated to eliminate sticking and to avoid door jamming


- Air-actuated gasket

Minimizes steam exposure to greatly extend gasket working life



- Whisper-quiet, integrated air compressor

Minimizes noise, eliminates need for facility air supply, supplies constant air pressure to gasket



- Side-mounted controls

Avoids steam exposure to electronics and extends touchscreen life.Front access swing-out assembly and magnetically attached side panels.Simplifies serviceability, assures access to all components



- Counterbalanced sliding door

Simplifies working footprint, lifts without the complexity of pneumatic or service-prone hydraulics



Description



Sliding door steam sterilizer simplifies chamber access with a sliding counterbalanced door

that seals safely against an air actuated non-stick gasket.


The non-stick gasket design provides a longer service life than a conventional steam-actuated

gasket.


The gasket is recessed into a precision-machined slot and will maintain a secure seal even in the event of a total utility loss. The gasket is easy to replace and does not require special tools or lubrication.


The door sealing mechanism includes redundancy for added security; a safety lock prevents

the door from opening if the chamber is under pressure.


Ergonomic benefits include a wide-grip handle and smooth, vertical open/close action on a counterbalanced assembly that is easy-to-operate with one-hand access.



Applications



Hospital CSSD department for instruments, garment and rubbers cap etc.



Competitive Advantage



Compact design, small space needed.





Vertical Sliding Door 100Liters Capacity Hospital CSSD Sterilizer With Micro Printer

Vertical Sliding Door 100Liters Capacity Hospital CSSD Sterilizer With Micro Printer



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
