Floor Loading Automatic Autoclave Steam Sterilizer With 3 Levels Passports

China Floor Loading Automatic Autoclave Steam Sterilizer With 3 Levels Passports supplier

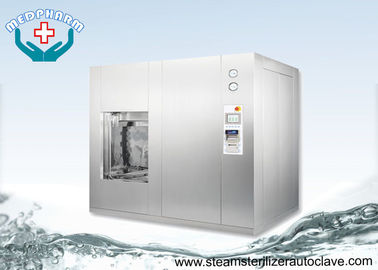

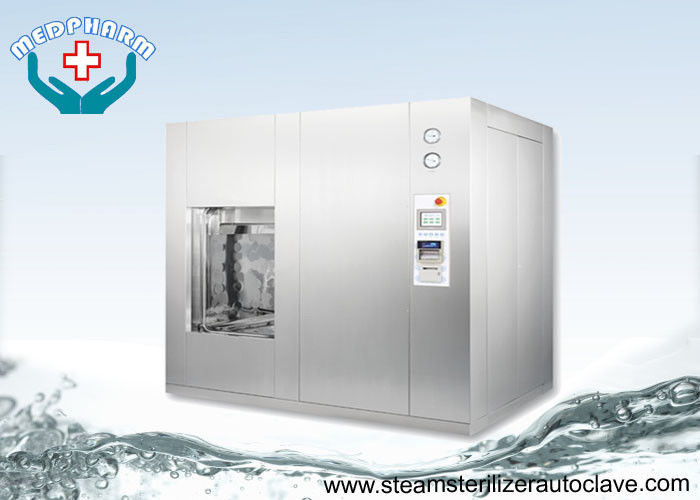

Large Image :  Floor Loading Automatic Autoclave Steam Sterilizer With 3 Levels Passports

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-1.2Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance/LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Product Name: Autoclave Steam Sterilizer Password For Different Permissions: 3 Levels
Sterilization Temperature Range: 105 --- 134°C Chamber And Jacket Material: Customized
Volume: 1200 Liters Power: 4KVA
Sterilization Medium: Saturated Steam Size: Customized

Floor loading Automatic Autoclave Steam Sterilizer With 3 Levels Passports





3 Levels passports proection



Floor Loading Automatic Autoclave Steam Sterilizer With 3 Levels Passports



Specifications



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.8Y

680*1180*1000

2200*2000*1410

1480

35

80

3

MD-1.0Y

680*1180*1250

2200*2000*1660

1630

40

100

4

MD-1.2Y

680*1180*1500

2200*2000*1910

2030

45

120

4

MD-1.5Y

680*1180*1870

2200*2000*2280

2230

50

150

4.5

MD-2.0Y

1000*1200*1700

2800*2000*2110

2490

60

200

4.5

MD-3.0Y

1000*1500*2000

2800*2200*2410

3050

90

300

5

MD-4.0Y

1000*1500*2670

2800*2200*3080

3700

120

400

6

MD-5.0Y

1000*1500*3340

2800*2200*3750

4600

150

500

8

MD-6.0Y

1000*1500*4000

2800*2200*4410

5400

180

600

8

MD-8.0Y

1000*1500*5340

2800*2200*5750

7000

240

800

12



Program



Test programs: Bowie & Dick test, vacuum test.

Working programs:  Multiple customizable programs for textiles, instruments, rubbers, culture

medium and liquids in unsealed bottles.

Main adjustable parameters:

  Sterilization temperature rage: 105 --- 134°C

  Sterilization time rage: 0---99 minutes

  Vacuum times: 0---9 times

  Drying time: 0---99 minutes

Multiple adjustable parameters to ensure user’s customized programs are available, accurate

and perfect sterilization effect.



Description:



Backed by rich experience, we have emerged as one of the leading manufacturers, exporter,

distributor, wholesaler and suppliers of automatic Autoclave Steam Sterilizer.



The Autoclave Steam Sterilizer are provided in diverse dimensions and specifications

as per customer’s demand.



These steam sterilizers are manufactured after taking all the requirements of customers by using high quality of material & technology.



Ø Chamber Stainless Steel quality 304

Ø All outer body parts are stainless steel

Ø Fully automatic PLC control panel with online printer

Ø Short start up time

Ø Option to operate on 105℃ to 134℃

Ø Fitted with heavy duty vacuum pump

Ø Over 99.9% of air expulsion through purging

Ø programmable cycles option for varying load i.e.

· Pre Start cycle

· Leakage Test

· 2-3 cycles for different loads @ 121℃

· 2-3 cycles for different loads @ 134℃

Ø Sliding Door Mechanism Double motorized

Ø High quality Silicone Gasket

Ø Pneumatic Door sealing system

Ø Stainless Steel loading cart and trolley systems





Applications:



Cloth, rubber stoppers, instruments, unsealed containers, media, animal cages, mushrooms soil and seasonings.



Competitive Advantage:



Easy to use – one touch operation.

Large capacity – from 800 to 8000 liters

Highly customizable – with a wide range of accessories and options.

Best solution – for hospital CSSDs, pharmaceutical and biotechnological applications.
