Overpressure Protection Autoclave and Sterilizers With Safety Door System

China Overpressure Protection Autoclave and Sterilizers With Safety Door System supplier

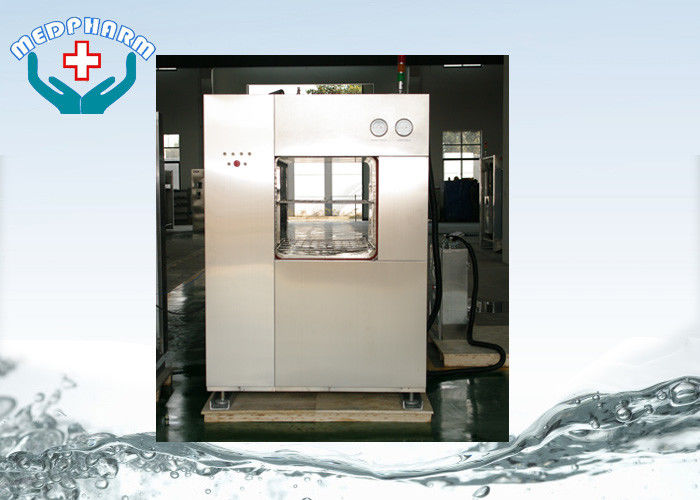

Large Image :  Overpressure Protection Autoclave and Sterilizers With Safety Door System

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: SGS
Model Number: MD-0.6V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 35 working days
Payment Terms: T/T in advance/LC AT SIGHT, Western Union
Supply Ability: 30 pcs per month
Contact Now
Detailed Product Description
Model Name: MDB-0.6V Autoclave Chamber Shape: Rectangle
Chamber Dimension: 600*600*1670mm Outer Dimension: 1350*2000*2010mm
Steam Consumption: 30kg/cycle Water Consumption: 70kg/cycle
Power: 3KVA Loading: Trolley And Cart
Control Method: PLC Control



Overpressure Protection Autoclave and Sterilizers With Safety Door System





Main parameter







  • PLC based control system
  • 5.7", LCD color touch screen display
  • Easy to read from multiple angles
  • Self-prompting menus
  • Multi-layered password security
  • 15 easy to program cycles, including cycle names
  • Internal cycle memory



  • Impact printer with paper take-up
  • Full cycle print out
  • Optional CF card data storage
  • Optional remote service access
  • Audible and visual alarms for safety
  • Custom programming available
  • Replaces any existing steam sterilizer control unit





Model



Model Chamber Size Overall Size Steam Water Power
W*H*D mm W*H*D mm Kg/cycle Kg/cycle KVA
MDB-0.11V 400*400*700 1000*1800*1040 14 35 2
MDB-0.16V 400*400*1000 1000*1800*1340 16 40 2
MDB-0.20V 400*400*1300 1000*1800*1640 18 45 2
MDB-0.24V 600*600*670 1200*2000*1010 20 50 2
MDB-0.30V 600*600*840 1200*2000*1180 22 55 2
MDB-0.36V 600*600*1000 1200*2000*1340 25 60 3
MDB-0.45V 600*600*1250 1200*2000*1590 27 65 3
MDB-0.60V 600*600*1670 1200*2000*2010 30 70 3





Features



♦ Extreme process reliability

♦ User-friendly HMI

♦ Parameters could be easy adjusted for perfect compliance with various customer requirements

♦ Efficient drying based on a high performance vacuum system

♦ Minimal energy consumption



Specification



►Components directly touching materials are all made of SS304, such as the chamber, door plate,

pipelines and loading cart.

►The jacket is of good quality material SS304.

►Heat resistant silicon rubber gasket in accord with FDA regulations.

►The external cover and insulation cover are made of SS304 which makes the equipment more

easily cleaning.

►Integrity testing port.

►Diploid temperature sensor for control system and recording system individual.

►High quality silicate insulation cotton can effectively lower energy emitting consumption and

heat radiation.



Optional for customer selection



Energy supply testing and monitoring system, such as the pressure of steam, water and

   compressed air.

Condensate water cooling tank equipped for drainage temperature safety.

PID valve for the chamber uniform temperature

Customized design and manufacturing is our pleasant job and offering satisfied solutions

  complied for your special URS is our duties.



Medpharm Sterilizer showing



Overpressure Protection Autoclave and Sterilizers With Safety Door System

Overpressure Protection Autoclave and Sterilizers With Safety Door System

Overpressure Protection Autoclave and Sterilizers With Safety Door System



Standard packing of Medpharm Sterilizers



Overpressure Protection Autoclave and Sterilizers With Safety Door System

Overpressure Protection Autoclave and Sterilizers With Safety Door System

Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
