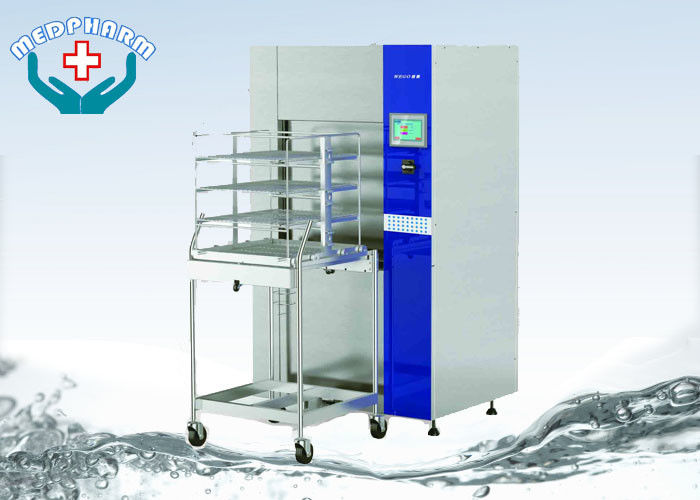

Single Chamber Rapid Automatic Medical Instrument Washer Disinfector 360L

China Single Chamber Rapid Automatic Medical Instrument Washer Disinfector 360L supplier

Large Image :  Single Chamber Rapid Automatic Medical Instrument Washer Disinfector 360L

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: ISO
Model Number: QK-Z-II

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: According to size
Packaging Details: Plywood box
Delivery Time: 20 work days
Contact Now
Detailed Product Description
Door: Single / Double Door Installation Type: Floor Standing
Chamber Material: 304 Stainless Steel Capacity: 360 Liter
Heating Source: Steam Or Electric Display: LCD Display

Single Chamber Rapid Automatic Medical Instrument Washer Disinfector 360L



Quick details

  • 360 liter, 8 pieces baskets
  • Automatic Double Door
  • Steam heating or electric heating
  • LCD display

Description:



Medpharm’wide range of washers for hospital mark the evolution of a flexible full system for the washing, disinfection, drying and validation of medical items.

QK-Z-II washer-disinfectors feature automatic doors as part of a sophisticated system that meets the processing needs of a CSSD.



Main parameters:



360L cleaning amount(standard cleaning tray) 8 baskets
360L water resource consumption 20L/step
Hot-water treatment method 93℃
Water heating method Electric heating/steam heating
360L steam consumption 8KG/step(steam heating)



Steam heating



Type QK-Z-II QK-Z-II
Heating source Steam heating Electric heating
Capacity 360L 360L
Chamber size(LX W X H) 630 x 643 x 1000mm 630 x 643 x 1000mm
Outer size (LX W X H) 850 x 1090 x 1950mm 850 x 1090 x 1950mm
Net weight 350KG 320KG
Supply voltage 380V 380V
Frequency 50HZ 50HZ
Power 13.5KW 22.5KW



Safety features

  • Leakage protection:The device will trip automatically to protect the safety of operator when meeting leakage incident.
  • Heating tube overheating protection:Alarm will work for protectrion when heating turbe temperature is too high during the process of drying.(Electric heating)
  • Fan protection: Alarm will work for protection in order to prevent the cycle pump from locked rotor and overheat when sundries enter into cycle pump.
  • Door motor protection:Alarm will work for protection in order to prevent the door motor form locked rotor and overheat when the door get stuck.
  • Door safety protection: Alarm will work for protection in order to prevent the door from extrusion deformation.



Technology advantage:



The processes of cleaning, rinsing 1, rinsing 2, desinfection and drying run automatically.The time of the whole process that stream heating need ≤45minutes.



Channel-type double door with interlock function ensueres isolation effectively between cleaning area and contaminated area. Safety lock makes sure that it can automatically return when meeting obstacles. Doule transparent tempered glass doors with large window isolate sound and heat and is convenient for user to observer the cleaning state.



Siemens PLC control system and color touch screen man-machine interface that make operation interface simple and friendly and can set various parameters in order to meet the customer individual demands.



The device with network extended interface and USB interface can realize interconnection and store cleaning record from U disk.



The core componects including cycle pump, fan,control system,pneumatic valve,direct reducer, pressure diffrence switch, microswitch,metering pump adopt international famous brand to ensure operation stable.
