Product Details:
Payment & Shipping Terms:
|
| Configuration: | Floor-Standing | Application: | Medical Instruments, Tools |
|---|---|---|---|
| Door Type: | Motorized Hinge Door | Chamber Material: | AISI 316L Stainless Steel |
| Sterilization Cycles: | Available | Drying Function: | Strong Special Post Vacuum |
| High Light: | Sterilized Medical Equipment,Sterilization Medical Equipment |
||

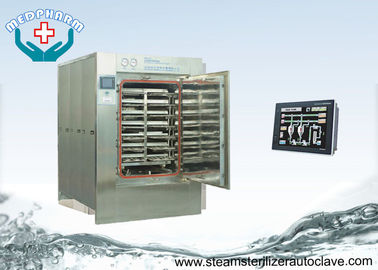

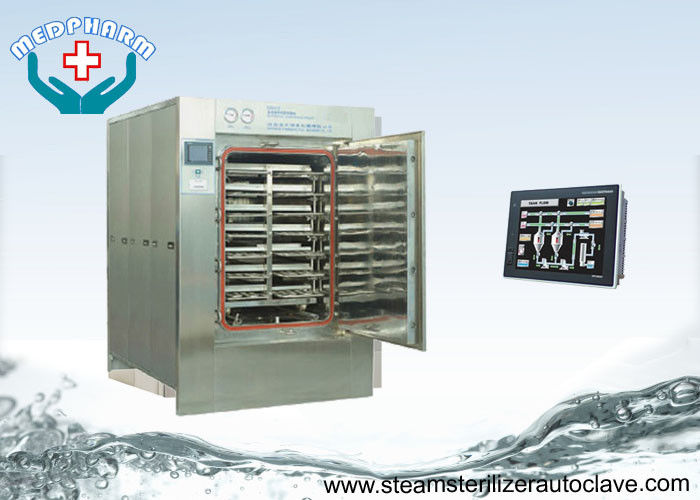

Automatic Motorized Hinge Door Medical Autoclave Sterilizer With Easy Maintenance Access
Features
Specification
|
Model |
MD-0.36 |
|
|
Style |
Single Door (S) |
Double Door (D) |
|
Overall Dimension |
1350*1800*1340mm |
1350*1800*1280mm |
|
Chamber |
600*600*1000mm ,Vol: 360L, Material: SS 316L |
|
|
Net weight |
800kg |
|
|
Loading System |
2pcs plates |
|
|
Operating Temperature |
105°C to 134°C |
|
|
Air Removal |
Vacuum / Gravity |
|
|
Controls |
PLC |
|
|
Display |
5.7inch color touch screen |
|
|
Printer |
Built-in printer |
|
|
Power |
AC380v,50Hz, 3phase, N, E |
|
|
Steam feeding |
External steam supply, 0.4---0.7MPa, saturated steam offer by user Built-in electrically heated steam generator (Standard) Combining steam generators: individual electrically heated steam generators or natural gas heated steam generators |
|
|
Water |
Softened water (Hardness <50ppm, pH Neutral) Water pressure: 0.15----0.3MPa |
|
|
Compressed air |
Oil free compressed air is important to the autoclave’s running. Oil free silence air-compressor is optional for user’s selection. Compressed air pressure: 0.5---0.8MPa |
|
Sterilization Cycles
|
Cycle No. |
Cycle Name |
Further Details |
|
1 |
Rubber plugs |
3 times Vacuum, expose temperature 121℃, expose time 25 min, drying time 25 min. |
|
2 |
Aluminum caps |
3 times Vacuum, expose temperature 132℃, expose time 15 min, drying time 15 min. |
|
3 |
Clothing |
3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min. |
|
4 |
Liquid |
15 min exchange, expose temperature 121℃, expose time 15 min, cooling time 25 min. |
|
5 |
B-D Test |
3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min. |
|
6 |
Vacuum Leakage Test |
Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect. |
|
7 |
User Programmable |
All preset parameters can be resettable; Multiple customized programs can be set and stored by user. |
Specialized In Steam Sterilization
From the beginning as a sterilizer service company, a deep understanding of the sterilization process has been essential to our growth and success as a sterilizer manufacturer. We utilize this understanding of sterilization to design, engineer and manufacture the best sterilizer available in the market.
Every sterilizer we build is designed, manufactured, assembled and tested at our company headquarters in China. Sterilizer assembly and testing is completed in our state-of-the-art stainless and carbon steel only facility.
