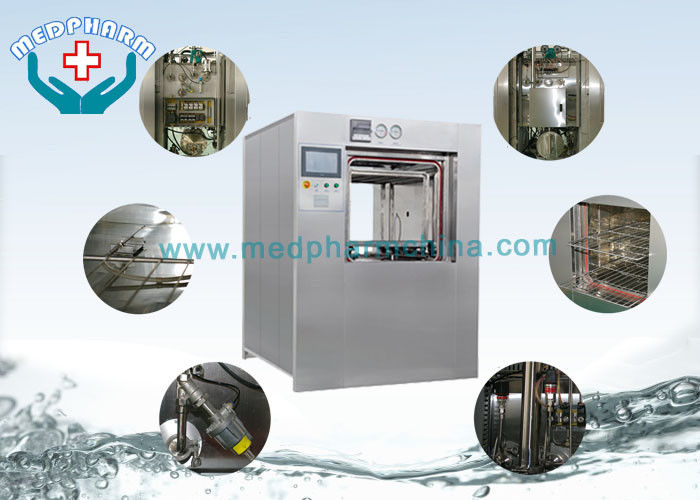

Safety Interlock Medical Sterilizer Autoclave With Automatic Leak Test

Safety Interlock Medical Sterilizer Autoclave With Automatic Leak Test

Features

1. Multiple safe systems to ensure your smooth operation without safety worry.
2. Vertical sliding door stable and easy operation
3. Integrated automatic PLC control system with one key operation function
4. High quality chamber with fine polished of SUS304 or SUS316L for your selecting
5. Flexible loading system suitable for various goods requirements
6. Customized orders are available

Parameters

• Model: MD-0.24V
• Door type: Vertical sliding single/double door
• Chamber size: 1500(D)*400(W)*400(H) mm, 240 liters
• External dimension: 1850(D)*1250(W)*1800(H)mm
• Max working pressure: 0.23Mpa
• Working vacuum degree: <-0.086Mpa
• Max working temperature: 134℃
• Net weight: 800Kg
• Utilities (supplied by user)
• Electric power: AC380V, 50Hz, 3Ph/N/E, 3KVA, extra 18KVA for built-in steam generator
• Water: 0.15----0.3MPa, Hardness <50ppm, pH Neutral, 70Kg/cycle
• Compressed air: 0.5～0.7Mpa, 10 liters/min

Specification

This Compact Medical Sterilizer Autoclave is Designed and manufactured according to

ISO 9001, ISO 13485 system and latest moist steam sterilizer related standards, whose obvious

advantae is equipped Multiple Safe Systems to ensure your satisfied using smoothly.

It’s suitable for science institute laboratories, hospital CSSD, clinic, operating room to sterilize

experiment tools, medical instruments,sterile clothing, dressings, vessels, apparatuses,

operating tools,culture medium etc..

Safety System

Door safety

• Chamber pressure is over safe pressure (safe pressure settable range is 0---0.03Mpa), door can not be unsealed or open.
• Double door interlocked, one door can be open upon the other one is closed.
• Sterilization cycle can be started upon the door closed and sealed safely.
• Steam is not allowed into the chamber until the door is sealed.

Pressure safety

• Safety valves are equipped both the chamber and jacket for pressure overloading protection;
• High quality pressure sensors and transmitters are sending accurate pressure data to PLC for safety supervised and controlled

Temperature safety

• High quality temperature sensors and transmitters are sending accurate pressure data to PLC for safety supervised and controlled
• While the temperature is over the requested, PLC system automatic control and adjust it at once, then alarming and recording for user’s treating right away.
• Alarm device, combined aural and visual, is equipped for reminding the safety issue occurre and informing the user to treat it in time.

Sterilization Programs

 B-D Test

  3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min.

Vacuum Leakage Test

  Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization

 effect.

Instruments/Tools

  3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min.

Clothing

  3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min.

Liquid

  15 min exchange, expose temperature 121℃, expose time 15 min, cooling time 25 min.

User Programmable

  All preset parameters can be resettable; total 15 kinds programs can be customized

Main adjustable parameters

    Sterilization temperature rage: at 105°C to 134°C

    Sterilization time rage: 0---9999 seconds

    Vacuum times: 0---9 times

    Drying time: 0---9999 seconds
