| Production Name: | Autoclave Steam Sterilizer | Loading Capacity: | 360 Liters Chamber |
|---|---|---|---|
| Material: | Chamber And Jacket Of SUS304 | Door Construction: | Vertical Sliding Single/double Door |
| Steam Supply: | External Boiler Steam | Installation Type: | Floor Standing/pass Through Installation Between Isolation Walls |
| High Light: | High Pressure Steam Sterilizer,Table Top Autoclave Steam Sterilizer |
||

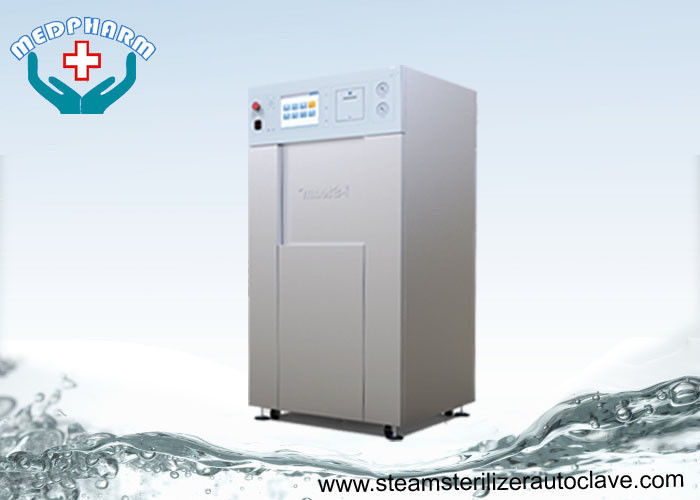

Fully Jacket SUS304 Chamber Autoclave Steam Sterilizer For Garment
Brief
This Autoclave Steam Sterilizer is designed and manufactured according to ISO 9001, ISO 13485
system and latest moist steam sterilizer related standards.
High capacity to ensure excellent performances even at productivity peaks. These steam sterilizers
are characterized by a great portability thanks to standard and customized cycle programs, in an
effort to gain the best results and optimize time, energy and resources.
Programs
* Test programs: Bowie & Dick test, vacuum leak test.
* Working programs: Multiple customizable programs for textiles, instruments, rubbers, culture
medium and liquids in unsealed bottles.
* Main adjustable parameters:
Sterilization temperature rage: at 105°C to 134°C
Sterilization time rage: 0---99 minutes
Vacuum times: 0---9 times
Drying time: 0---99 minutes
* Multiple adjustable parameters to ensure user’s customized programs are available, accurate
and perfect sterilization effect.
Sterilzation Cycles
|
Cycle No. |
Cycle Name |
Further Details |
|
1 |
Instruments/Tools |
3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min. |
|
2 |
Clothing |
3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min. |
|
3 |
Liquid |
15 min exchange, expose temperature 121℃, expose time 15 min, cooling time 25 min. |
|
4 |
B-D Test |
3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min. |
|
5 |
Vacuum Leak Test |
Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect. |
|
6 |
User Programmable |
All preset parameters can be resettable; Multiple customized programs can be set and stored by user. |
Electrical power
Our ordinary electrical power is AC380, 50Hz, 3phase/N/E
Other electrical power standards are available and compatible
Steam feeding
- External steam supply, 0.4---0.7MPa, saturated steam offer by user
- Built-in electrically heated steam generator is optioonal
- Combining steam generators are optional: individual electrically heated steam generators or natural
gas heated steam generators
Water
Softened water (Hardness <50ppm, pH Neutral) is at least requirement for the autoclaves’
durability and safety of the goods to be sterilized.
Water pressure: 0.15----0.3MPa
Compressed air
Oil free compressed air is important to the autoclave’s running.
Oil free silence air-compressor is optional for user’s selection.
Compressed air pressure: 0.5---0.8MPa
Loading patterns
Flexible loading system suitable for various goods requirements
* Loading Baskets
* Loading plate (standard)
* Loading car and trolley
Main Parameters:
|
Model |
MD-0.36V |
|
Door type |
Vertical sliding single/double door |
|
Max working pressure |
0.23Mpa |
|
Working vacuum degree |
<-0.086Mpa |
|
Max working temperature |
134℃ |
|
Chamber size |
1000*600*600 mm(L*W*H) |
|
External dimension |
1350*1350*1800mm(L*W*H) |
|
Net weight |
800Kg |
|
Utilities Supply |
|
|
Electric power |
AC380V, 50Hz, 3Ph/N/E,3KVA |
|
Water |
0.15---0.3MPa, Hardness <50ppm, pH Neutral, 25Kg/cycle |
|
Steam |
0.5～0.7Mpa, 20Kg/cycle |
|
Compressed air |
0.5～0.7Mpa, 10 liters/minute |
