Product Details:
Payment & Shipping Terms:
|
| Model Name: | Steam Autoclave | Used For: | Vials And Oral Solution |
|---|---|---|---|
| Media: | Pure Steam | Leak Test: | Vacuum Or Color Water |
| Chamber: | 680*1180*1500 | Overall Size: | 2200*2000*1840mm |
| Door Mechanism: | Horizontal Sliding Door | Door Type: | Pass Through Or Single Door |
| Material: | Customized | Loading: | Semi-automatic Or Manual |
| High Light: | Pre Vacuum Steam Sterilizer,Table Top Autoclave Steam Sterilizer |
||

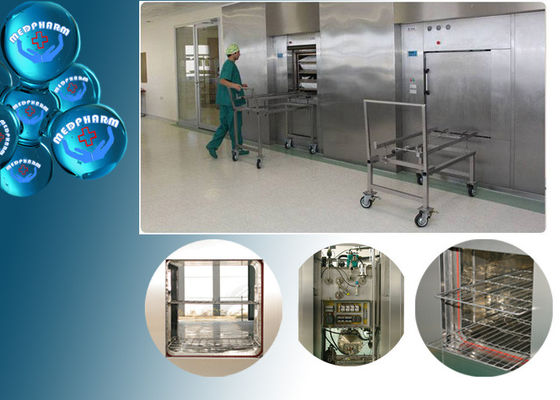

High Pressure Autoclave Steam Sterilizer For Terminal Sterilization Process
Specifications:
|
Model |
Chamber Size |
Overall Size |
Net Weight |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MDA-0.8Y |
680*1180*1000 |
2200*2000*1410 |
1480 |
35 |
280 |
3 |
|
MDA-1.0Y |
680*1180*1250 |
2200*2000*1660 |
1630 |
40 |
300 |
4 |
|
MDA-1.2Y |
680*1180*1500 |
2200*2000*1910 |
2030 |
45 |
320 |
4 |
|
MDA-1.5Y |
680*1180*1870 |
2200*2000*2280 |
2230 |
50 |
350 |
4.5 |
|
MDA-2.0Y |
1000*1200*1700 |
2800*2000*2110 |
2490 |
60 |
400 |
4.5 |
|
MDA-3.0Y |
1000*1500*2000 |
2800*2200*2410 |
3050 |
90 |
500 |
5 |
|
MDA-4.0Y |
1000*1500*2670 |
2800*2200*3080 |
3700 |
120 |
600 |
6 |
|
MDA-5.0Y |
1000*1500*3340 |
2800*2200*3750 |
4600 |
150 |
700 |
8 |
|
MDA-6.0Y |
1000*1500*4000 |
2800*2200*4410 |
5400 |
180 |
800 |
8 |
|
MDA-8.0Y |
1000*1500*5340 |
2800*2200*5750 |
7000 |
240 |
1000 |
12 |
Description
Vials and oral solution Steam Sterilizer is mainly used for the sterilization, leak test and washing
of ampoule, syrup and IV solution with small capacity. It adopts pressure steam as sterilizing
medium to achieve the uniform sterilization between 105℃～127℃. This sterilizer adopts heating
mode of displacement and exhausting from multi-points to ensure the through elimination of air in chamber, uniform and rapid heating and eliminate the dead corner caused by the existing air. Leak test by vacuum and color water is adopted to improve the detection rate of waste after sterilization, meanwhile provides the documents system that meets 2010 version GMP requirements.
Applications
Pharmacy factory terminal sterilization of injections, oral liquid medicines, oral liquid health care products packed into ampoules, vials or tube shaped bottles etc.
Competitive Advantage
Customized for size, design and installation. Offer full set documentation of IQ, OQ,PQ,OQ
