Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter

Good quality Hospital Steam Sterilizer for sales
Good quality Hospital Steam Sterilizer for sales
It is worthy to cooperate with Medpharm again. Also, prompt action on after sales service left me a deep impression.

—— Manusawee Wareesuwan

I like the sterilizer here running in our factory,it is wonderful.It is fully made to my requirement.Before that I contact many suppliers but they can

—— Marina.Stolyrova

I'm Online Chat Now

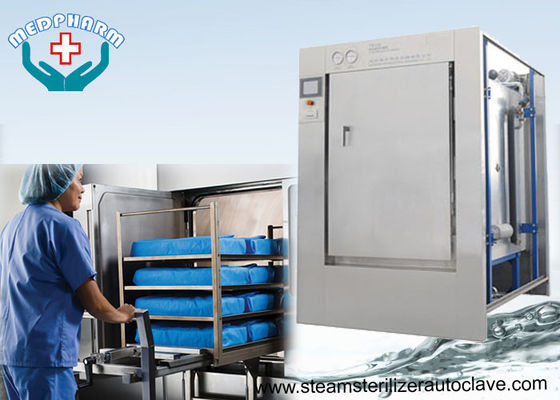

Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter

China Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter supplier
Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter supplier Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter supplier Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter supplier

Large Image :  Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MD-1.2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Door Type: Motorized Hinge Door Application: Pharmaceutical Industry
PLC And Touch Screen System: Yes Piping Material: SS304
Chamber Volume: 1200 Liters Feature: Safety Door System



Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter

Features



  • Chamber volume: 1200 liters
  • Free standing single doors
  • Motorized hinge doors effortless pneumatically operated;
  • Hydraulic components made of high corrosion resistant 304 stainless steel;
  • Internal high-efficiency jacket by SS304 unique door closing system with pneumatic activated gasket seal for perfect airtight, safety and maximum reliability;
  • Ergonomic loading height;
  • Operation of the unit from both ends by operator panel and display fitted on loading side;



Door Safety



The autoclave door is designed with a number of independent mechanical and digital safety features. This guarantees that if a problem occur, an autoclave failure will be prevented.


  • A safety device prevents the operator from opening the door when chamber is pressurized
  • Steam is not allowed into the chamber when the door is open
  • A cycle cannot start if the door is open or not properly locked
  • The door cannot unlock until chamber pressure reaches room pressure
  • The motorized hinge door progress will automatically stop if an obstruction is detected



Engineered With People In Mind

Our autoclaves are built to last longer, perform consistently, and comply with the strictest international standards. Autoclave chambers are constructed of long lasting 304 grade tainless steel with superior corrosion resistance. The chambers are jacketed for uniform heat distribution. The generator and piping are constructed of stainless steel. The pneumatic valves are air pressure operated, significantly reducing maintenance. We work to keep our autoclaves state of the art.


Applications

This series hospital sterilizers are designed and manufactured specially for hospital, pharmaceutical factory to sterilizie medical instruments, sterile clothing, dressings, vessels, apparatuses, tools, culture medium etc.


Main Parameters



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.24

600*600*670

1500*1800*1010

700

20

30

2

MD-0.36

600*600*1000

1500*1800*1340

800

25

40

2

MD-0.6

610*910*1170

1500*1900*1510

1250

30

60

3

MD-0.8

610*910*1450

1500*1900*1790

1400

35

80

3

MD-1.0

680*1180*1250

1600*2000*1590

1550

40

100

4

MD-1.2

680*1180*1500

1600*2000*1840

1950

45

120

4

MD-1.5

680*1180*1870

1600*2000*2210

2150

50

150

4.5

MD-2.0

1000*1200*1700

2000*2000*2040

2400

60

200

4.5

MD-3.0

1000*1500*2000

2000*2200*2340

2950

90

300

5

MD-4.0

1000*1500*2670

2000*2200*3010

3600

120

400

6

MD-5.0

1000*1500*3340

2000*2200*3680

4500

150

500

8

MD-6.0

1000*1500*4000

2000*2200*4340

5300

180

600

8

MD-8.0

1000*1500*5340

2000*2200*5680

6900

240

800

12


Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter

Air filter

Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter

Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
