EO ETO Ethylene Oxide Sterilization Equipment For Low Temperature Sterilization

China EO ETO Ethylene Oxide Sterilization Equipment For Low Temperature Sterilization supplier

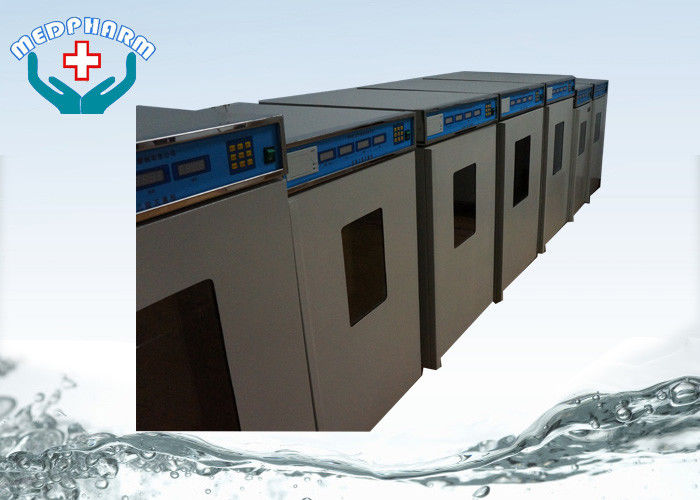

Large Image :  EO ETO Ethylene Oxide Sterilization Equipment For Low Temperature Sterilization

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: ISO
Model Number: SQ-HV

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: According to size
Packaging Details: Plywood box
Delivery Time: 20 work days
Supply Ability: 20 units per month
Contact Now
Detailed Product Description
Door: Vertical Sliding Volume: 120L/220L
Sterilization Medium: Ethylene Oxide Sterilization Temperature: 35---60°C
Application For: Endoscopes (both Rigid And Flexible) ETO Cartridge: Yes
PLC Controlled: Yes Printer: With

EtO Sterilization Cycle

There are at least three stages in a typical EtO sterilization cycle:

  • Preconditioning
  • Sterilization
  • Aeration (Degassing)

Cycle time is usually more than 14 hours.

Preconditioning

Preconditioning prepares the chamber environment to meet the ideal conditions for temperature, pressure and humidity. First air is removed from the chamber to allow for gas penetration. A leakage test is performed, to ensure that staff and environment are safe. Next, some steam is injected into the chamber and humidifies the load, since EtO is only effective in a humid environment. The chamber is heated by either steam or hot water which is present in the jacket. Normally the jacket is kept at the same temperature 24/7 to minimize temperature fluctuations.

Sterilization

The second stage is the actual sterilization process. The EtO enters the chamber via evaporation with a certain amount of steam to keep the humidity level up as well as to make sure the EtO is reaching all parts of the load. When the required concentration in the chamber and load is achieved the actual sterilization stage starts. The lower the gas concentration in the chamber the longer is the sterilization time. As EtO is absorbed by many kinds of plastic materials it is important to keep the concentration at the right level. To achieve this EtO is sometimes added to the chamber after a while. It is of major importance to ensure the appropriate concentration level of EtO in the chamber to achieve effective and safe sterilization.

Aeration (Degassing)

Aeration is the most important and longest part of the EtO sterilization cycle. As mentioned, materials such as plastics and rubbers absorb gas and if applied to patients, the toxic gas could damage their body tissue! For this reason it is very important to have an excessive aeration stage to remove any remaining EtO gas and to allow absorbed gas to evaporate again from the sterilized items. This is done by circulating HEPA filtered air over the load at a temperature of 30°C to 50°C. This is sometimes done in the sterilizer’s chamber, but sometimes the sterilized items are placed in a special aeration cabinet. If the sterilized items are repositioned from the chamber to the aeration cabinet then strict safety precautions should be in place to prevent EtO gas exposure to the people who perform this function. A commonly used time period for this aeration treatment is 48 hours which results in a very slow instrument turnaround. A special infrastructure is required, with gas tight ventilation piping to the roof top or to a catalyzer. The sterilizer cannot use the hospital's ventilation system because it is too dangerous. The special ventilation piping has to be tested for gas leaks all the way as this is the only way to minimize the risks.

There are some advantages however. An EtO sterilizer can have a very large chamber, even up to 7m³. They are often used for the sterilization of large quantities of products that cannot be sterilized by steam. When gauze or non-woven materials like disposable gowning are manufactured they need to be sterilized before entering the hospital. These are often sterilized by EtO because steam will damage or deform these materials.

To summarize, EtO sterilization should be used only when another method is not appropriate.



Advantages of EtO are:

  • Low temperature
  • High efficiency – destroys microorganisms including resistant spores
  • Large sterilizing volume/ chamber capacity
  • Non corrosive to: plastic, metal and rubber materials

Disadvantages are:

  • Excessively Long cycle
  • Safety concerns - carcinogenic to humans
  • Toxicity issues - toxic residues on surgical instruments and tubing
  • Not recommended for flexible scope
  • EtO is flammable
  • Requires special room conditions, safety equipment and separate ventilation system
  • Relatively high annual costs for maintenance, servicing and consumables

Technical parameter

Rated pressure 0.1MPA Steam supply pressure 0.15-0.6MPA
MAX working pressure 0.05MPA Cooling water pressure 0.15-0.3MPa
Rated temperature 100°C Compressed Air Pressure 0.4-0.6MPa
Max working temperature 37-55°C Control power 220V AC/0.5KW
    Motor power 380V AC/6KW





Item and Type SQ-H120V SQ-H220V
Appearance size(W×H×D) 1000*1850*800mm 1000*1850*1100mm
Inner chamber size(W×H×D) 450*400*750mm 520*500*800mm
Inner chamber volume 120 220
Power supply 220V(110V);50(60)HZ 220V(110V);50(60)H
Power 3KW 3.3 KW
Outside packing material stainless steel/Q235plastic spray stainless steel/Q235 plastic spray
Inner chamber material SUS304 SUS304
Water storage capacity of the humidifying bottle 600 mL 600 mL
Exhaust condition 1/2″ stainless steel tube (SUS304) 1/2″ stainless steel tube (SUS304)
Weight 200KG 220KG
Sterilization cycle ( all) 55℃:3 hours 30 minutes 55℃:3 hours 30 minutes
37℃:5 hours 30 minutes 37℃:5 hours 30 minutes
