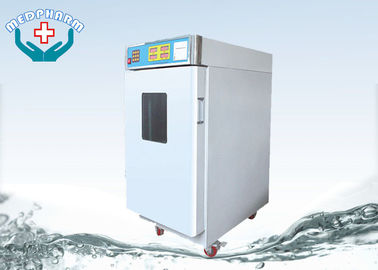

EO Mixture Gas Medical Device Sterilization With Manual Door And Manual Loading

China EO Mixture Gas Medical Device Sterilization With Manual Door And Manual Loading supplier
EO Mixture Gas Medical Device Sterilization With Manual Door And Manual Loading supplier EO Mixture Gas Medical Device Sterilization With Manual Door And Manual Loading supplier

Large Image :  EO Mixture Gas Medical Device Sterilization With Manual Door And Manual Loading

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: ISO
Model Number: SQ-H series

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Plywood box
Supply Ability: 50 units per month
Contact Now
Detailed Product Description
Media: EO Mixture Gas Door Type: Manual
Medical Appliances: Electronic Instruments, Optical Instruments Control System: Microcomputer
Air Filter: Incorporated Loading: With Trays



Specification:

Ventilation frequency: random
Sterilizing pressure:-5∼-80Kpa
Sterilizing humidity: 45∼75% RH
Power: 50L1.2KW 150L2.4KW 200L2.8KW 300L3.6KW
Sterilizing time:1-9 hours
Ventilation time: random
Sterilizing temperature:room temperature∼100oC
Operating Voltage:220V±10%50HZ



Newly designed liquid crystal display and man-machine interfaces

  • Safe negative pressure circuation during the whole process and no epoxyethane leakage
  • Microcomputer control,easiness of operation and chinese character display for working condition(temperature,humidity,negative pressure,sterilizing time,residual gas processing time/frequency,perpetual calendar and so on)
  • Various size types of series products for your choice:50L,150L,200L and 300L.
  • Internal humidity transducer monitors humidity automatically,ensuring humidity value not less than 60% RH.
  • Even if the unexpected occurs,such as power failure,blackout or system breakdown,self-recovery function can initiate check-up for trouble and ensure the normal operation if the power is on.
  • Multiple protective functions including overtemperature and overpressure protection make it much safer to use.
  • Door interlock switch ensures the automatic closure of cabinet door after the sterilization process starts(under this condition,the door cannot be opened manually).However,the door can be opened after preconditioning,sterilization,purification,and ventilation.
  • User-friendly design,Chinese character menus,cursor display and flexible light touch key make everything simple and easy.As compared with similar products in domestic market,our product,an advanced sterilizing instrument at current time,has unique advantage and is greatly welcomed by customers worldwide.

Size table



Model Chamber size(L*W*H)cm Overall size(L*W*H)cm
SQ-H80 55×27×38 74×47×92
SQ-H120 60×40×50 77×61×106
SQ-H220 74×50×60 92×68×115
SQ-H360 80×65×70 97×84×131
SQ-H460 80×72×80 98×92×148
SQ-H600 88×80×86 116×100×155
SQ-H800 95×90×95 115×110×166
