Three - Pass Structure YY(Q)W Horizontal Oil / Gas Steam Boiler PLC Control

China Three - Pass Structure YY(Q)W Horizontal Oil / Gas Steam Boiler PLC Control supplier
Three - Pass Structure YY(Q)W Horizontal Oil / Gas Steam Boiler PLC Control supplier Three - Pass Structure YY(Q)W Horizontal Oil / Gas Steam Boiler PLC Control supplier Three - Pass Structure YY(Q)W Horizontal Oil / Gas Steam Boiler PLC Control supplier

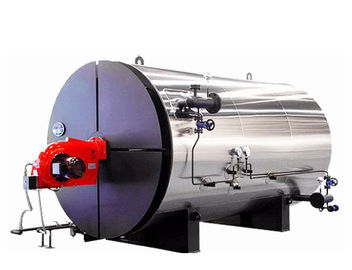

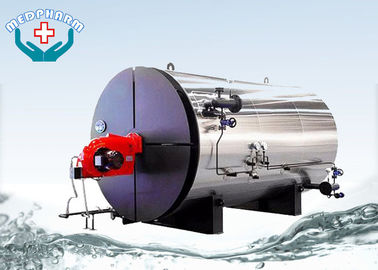

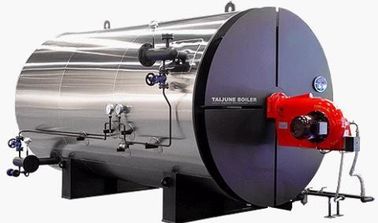

Large Image :  Three - Pass Structure YY(Q)W Horizontal Oil / Gas Steam Boiler PLC Control

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: ISO/CE/CCC
Model Number: YY(Q)W

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Plywood box
Delivery Time: within 20 working days
Supply Ability: 50 units per month
Contact Now
Detailed Product Description
Control System: PLC Control Heating Source: Oil Gas Thermal Oil Boiler
Alarm Interlock Devices: Ensure Safe Operation Of The Boiler Configuration: Horizontal

Three-pass Structure YY(Q)W Horizontal Oil Gas Thermal Oil Boiler



Thermal Oil Boiler belongs to the ready assembly and integrative boiler, making the installation more easy and convenient, with no need of special foundation; it adopts three-pass structure with more efficient heating. Fuels: coal, wood pellets, biomass, diesel oil, heavy oil, natural gas, city coal gas, coal oven gas, producer gas with low thermal value, liquefied gas, industrial combustible waste and waste gas, etc.



The Features:



• Three-pass structure, occupying less storage space;

• All Hand welding in the production processes;

• Low fuel consumption, less pollution;

• Diesel Burner imported from Italy (Brand: Baltur);

• Intelligent control system & simulation screen controller;

• Central processor control;

• Automatic ignition and shutdown procedure control

• Automatic combustion control;

• Automatic switching and control of circulating pump;

• Automatic fault processing and alarm.



Technical Parameters Of Oil (Gas)-fuel Organic Heat Carrier Boiler

Parameter name 600(50)
Y(Q)
850(75)
Y(Q)
1200(100)
Y(Q)
1500(125)
Y(Q)
1800(150)
Y(Q)
2400(200)
Y
(Q)
3500(300)
Y
(Q)
4100(350)
Y
(Q)
6000(500)
Y
(Q)

Rated power(KW) 600 850 1200 1400 1800 2400 3500 4100 6000
Thermal efficiency(≥%) 90 90 90 92 92 92 92 92 92
Design pressure(Mpa) 1 1 1 1 1 1 1.1 1.1 1.1
Highest temperature of medium(℃) 350 350 350 350 350 350 350 350 350
Medium capacity of boiler() 0.4 0.52 0.76 0.95 1.48 2.1 2.4 2.53 6.1
Circulation oil volume(m³/h) 80 80 100 100 160 200 200 200 300
DN of oil outlet(mm) 100 100 125 125 150 200 200 200 250
Whole system
installed capacity
(KW)
Oil 30 40 40 45 50 70 70 70 150
Gas 30 40 40 45 50 70 70 70 150
Total weight of equipment(KG) 3530 4500 5600 6200 9500 10500 13500 16065 28850
External dimension(mm) Length 3650 4100 5500 5700 5900 6500 8000 8200 9000
Width 1500 1700 2100 2100 2100 2300 2400 2500 3200
Height 1870 2100 2400 2400 2550 2750 2900 3000 3600
Transport dimension(mm) Length 3250 3800 4600 4850 5100 5800 6800 7200 7800
Width 1500 1700 2100 2100 2100 2300 2400 2500 3200
Height 1870 2100 2400 2400 2550 2750 2900 3000 3600
