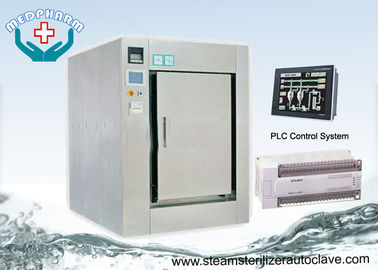

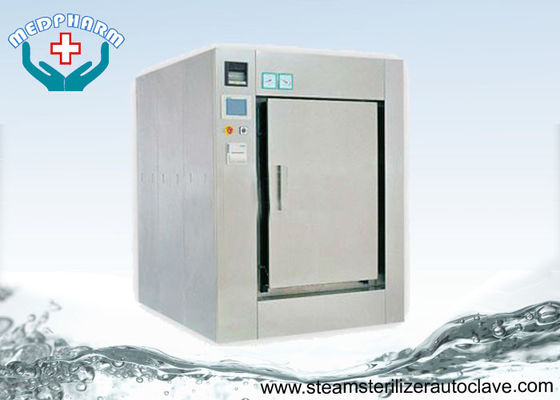

Horizontal Hinge Door CSSD Sterilizer 600 Liter With Built-in Steam Generator

Horizontal Hinge Door CSSD Sterilizer 600 Liter With Built-in Steam Generator
Horizontal Hinge Door CSSD Sterilizer 600 Liter With Built-in Steam Generator Horizontal Hinge Door CSSD Sterilizer 600 Liter With Built-in Steam Generator

Large Image :  Horizontal Hinge Door CSSD Sterilizer 600 Liter With Built-in Steam Generator

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MD-0.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Chamber Capacity: 600 Liters Chamber Material: AISI 316
Vacuum Times: 0---9 Times Steam Supply: 30kg/Cycle
Water: 60kg/Cycle Power: 3kVA
High Light:

cssd hospital equipment

,

sterilization equipment for hospital



Horizontal Hinge Door CSSD Sterilizer 600 Liter With Built-in Steam Generator



Brief



The new, recently designed sterilizer was created through careful selection of materials,

components and technical solutions that ensure durability, productivity and functional safety

at every moment.


All of our machines are constructed according to a high standard of reliability and hygiene.



Principle features



• Sterilization chamber made of AISI 316L stainless steel, jacket and door built in 304 stainless steel.
• High resistance to corrosive attack thanks to the electrolytic polishing treatment.
• External heating of the chamber (with steam) for 95% of the surfaces and elimination of cold areas.
• The seal between the chamber and the door is achieved with an inflatable gasket, completely

eliminating the loss of vacuum/steam.
• Completely dry vacuum pump compatible with high-performance steam without the use of water.
• Tri-Clamp system for the tubing related to the main systems.
• Reduced weight structure for easy installation, facilitating positioning on the ground and connection to utilities.
• Easy, intuitive management through a colour, touchscreen interface.



Specifications



Model

MD-0.6

Door number

Double door type

Door type

Motorized Hinge Door

Chamber material

SS316L

Chamber volume

600L

Chamber Size

610*910*1170mm

Overall Size

1500*1900*1510mm

Net Weight

1250kg

Steam

30Kg/cycle

Water

60Kg/cycle

Power(KVA)

3KVA+24Kw for steam generator

Sterilization temperature rage

105°C to 134°C

Sterilization time rage

 0---99 minutes

Vacuum times

 0---9 times

Drying time

 0---99 minutes

Components


SS304 built-in steam generator

Touch screen display

PLC control system

High effective liquid-ring vacuum pump

micro-printer recorder

With stainless steel trays

Electrical power

Our ordinary electrical power is AC380v, 50Hz, 3phase, N, E

Other electrical power standards are available and compatible



Main components



Vacuum system: Through a vacuum pump, unibody type, with water ring. The system is

responsible for the vacuum pulses in the initial conditioning of the load and in the final drying.



Steam generator: The generator is built in AISI 304 stainless steel, with automatic supply through

water centrifugal pump. The generator has thermal insulation through rock wool blanket which is

protected by a safety valve calibrated and sealed in the operational pressure. The water level is

controlled by a float valve, regulated to indicate high or low levels which control the water feed

and the safety level, cutting off the power supply of the resistances in case of lack of water.



Horizontal Hinge Door CSSD Sterilizer 600 Liter With Built-in Steam Generator 0



Built - in steam generator



Horizontal Hinge Door CSSD Sterilizer 600 Liter With Built-in Steam Generator 1



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
