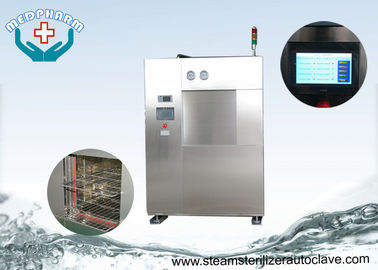

Horizontal Loading Compact Steam CSSD Sterilizer with PLC Controlled

Horizontal Loading Compact Steam CSSD Sterilizer with PLC Controlled
Horizontal Loading Compact Steam CSSD Sterilizer with PLC Controlled

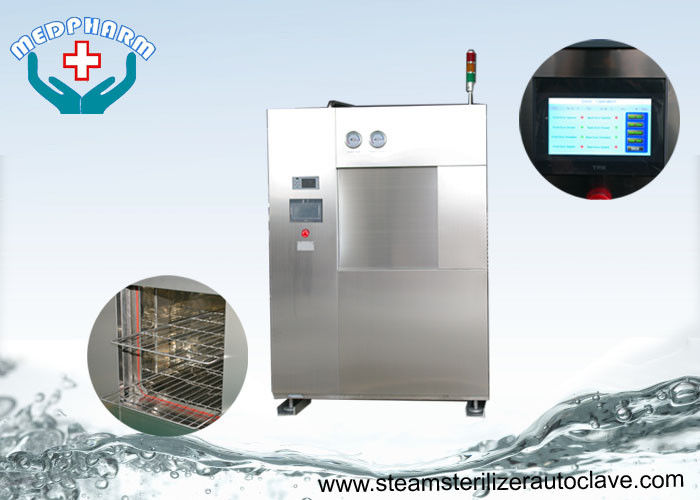

Large Image :  Horizontal Loading Compact Steam CSSD Sterilizer with PLC Controlled

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-V series
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Product Name: CSSD Sterilizer Door Open Type: Vertical Sliding Door
Chamber Size: Customized Overall Size: Customized
Optional Steam Source: Built In Steam Generator Optional Compressed Air: Air Compressor
Optional Water: Water Softer Optional Water Consumption: Water Saving System
High Light:

cssd hospital equipment

,

sterilising hospital equipment



Horizontal Loading Compact Steam CSSD Sterilizer with PLC Controlled


Sterilization Cycles



Cycle name Further details Application
Instruments/Tools 3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min. Solid materials to be sterilized:
●Packaged instruments
●Empty glass containers
●Empty metal containers
Porous materials to be sterilized:
●Rubber articles
Clothing 3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min. Materials to be sterilized from which air can’t be easily displaced
●Textile
User Programmable All preset parameters can be reset; Multiple customized programs can be set and stored by user. Customized
Test programs
B-D Test 3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min. Test program
Vacuum Leak Test Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect. Test program










































Description



  • With innovative high performance sterilizing technology, Medpharm hospital CSSD sterilizer chamber is made of AISI 316L stainless steel and entirely covered by a high efficiency jacket to ensure fast heating and reduced cycle times.This ensures even heat distribution and reduced utilities consumption for heating and cooling.
  • F0 Cycle: Calculates the sterilization time based on load temperature and duration exposed.These calculations are based on predetermined set points. The result is controlled exposure time.
  • 20 Ra. Polish: The internal chamber and door can be polished to a 20 Ra. finish or better for critical applications.
  • Steam to Steam Generator: A heat exchanging system used to create clean steam from a pure water source and house steam or electric boiler system. These systems are connected directly to the chamber.
  • Air Inlet Filter: An air inlet filter rated at 0.2 um. For use in high level sterilization.
  • Single and double door pass through options
  • Technical service access either on the left or right loading side
  • 20 programmes, 12 factory pre-defined, 8 custom.



Applications



Surgical packs, liquids in open or vented containers.



Competitive Advantage

This new chamber design minimizes dead space for optimal loading and throughput.



Specification



Model Chamber Size Overall Size Net Weight Steam Water Power
W*H*D mm W*H*D mm Kg Kg/cycle Kg/cycle KVA
MD-0.11V 400*400*700 1000*1800*1040 650 14 15 2
MD-0.16V 400*400*1000 1000*1800*1340 700 16 20 2
MD-0.20V 400*400*1300 1000*1800*1640 750 18 25 2
MD-0.24V 600*600*670 1200*2000*1010 800 20 30 2
MD-0.30V 600*600*840 1200*2000*1180 850 22 35 2
MD-0.36V 600*600*1000 1200*2000*1340 900 25 40 2
MD-0.45V 600*600*1250 1200*2000*1590 980 27 50 2
MD-0.60V 600*600*1670 1200*2000*2010 1100 30 60 3











Horizontal Loading Compact Steam CSSD Sterilizer with PLC Controlled 0
Horizontal Loading Compact Steam CSSD Sterilizer with PLC Controlled 1

Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
