| Chamber Capacity: | 200 Liter | Chamber Material: | AISI 316 Stainless Steel |
|---|---|---|---|
| Door Type: | Vertical Sliding Door,Single Door | Steam Supply: | Built-In SS 304 Steam Generator |
| Display Panel: | LCD Touch Screen | ||
| High Light: | sterilization equipment for hospital,sterilising hospital equipment |
||

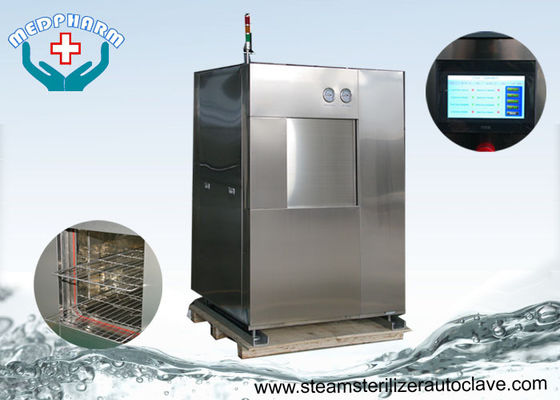

Single Door 316L Chamber CSSD Sterilizer With Steam Generator Touch Screen
Description
This series steam autoclaves are designed and manufactured specially for hospital CSSD,
operating room to sterilizing medical instruments, sterile clothing, dressings, vessels,
apparatuses, operating tools, culture medium etc.
Key features
- Improve productivity and maximize reliability and uptime
- User-friendly
- Safe and ergonomic
- Different configurations to fit the volume and workflow requirements
- Advanced control
- Well-tested sterilization process
- Top quality construction
- Easy access for service
- Compliance with the world’s toughest standards
- Designed for minimal environmental impact
Specifications
|
Model |
MD-0.20V |
|
Door number |
Single door |
|
Door type |
Vertical sliding door |
|
Chamber and jacket material |
SS316L / SS304 |
|
Chamber volume |
200 liters |
|
Chamber Size |
400*400*1300mm |
|
Overall Size |
1000*1800*1640mm |
|
Net Weight |
750kg |
|
Steam |
18Kg/cycle |
|
Water |
25Kg/cycle |
|
Power(KVA) |
2KVA+18Kw for steam generator |
|
Sterilization temperature rage |
105°C to 134°C |
|
Sterilization time rage |
0---99 minutes |
|
Vacuum times |
0---9 times |
|
Drying time |
0---99 minutes |
Durable structural design
a. Inner chamber design: Solid, SUS316L stainless steel or 304 stainless steel is used. Combined with the golden ratio, the product will be more durable.
b. Outer chamber design: Reinforcement and compartment thermal insulation design not only
allows even distribution of steam but also optimizes the effect of thermal energy to achieve energy-saving and efficiency.
Reliable safety device
a. Inner chamber safety system
1. Lock device: When the inner chamber pressure is more than 1,138mbar, the door cannot be
opened.
2. Automatic removal of excess water in the chamber: When excess fluid is detected in the chamber,
an alarm will be triggered and the water will be removed automatically.
b. Gasket safety system
1. Gasket pressure detection: Prevents steam from leaking through the door and controls safety.
2. Gasket mounting design: Automatically detects temperature, so that the user can remove the
gasket for cleaning under permissible conditions.
