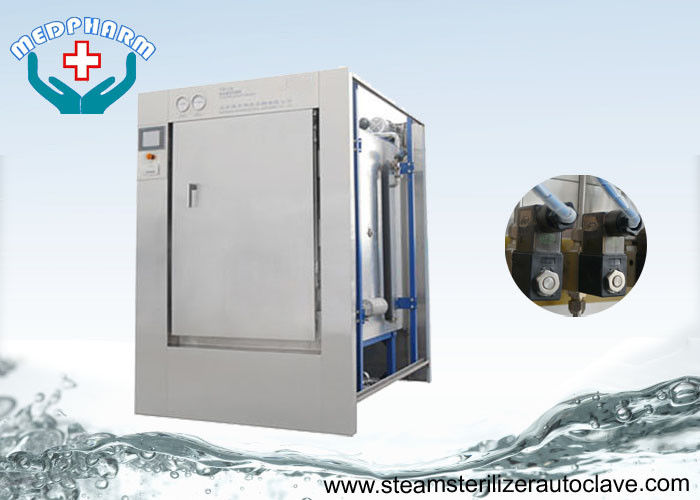

Built in Printer Hospital CSSD Pass Through Autoclave With Hinge Door

China Built in Printer Hospital CSSD  Pass Through Autoclave With Hinge Door supplier

Large Image :  Built in Printer Hospital CSSD Pass Through Autoclave With Hinge Door

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MD-1.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Chamber Volume: 1500 Liters Application: Hospital CSSD
Test Programs: Leak Test And Bowie-Dick Test Chamber Material: Stainless Steel 304
Accessories: SS304 Cart And Trolley Feature: Built-in Printer



Built in Printer Hospital CSSD Pass Through Autoclave With Hinge Door





Applications



Our pass through autoclave are specially designed to cover a large field of applications for hospitals, CSSD and medical centers. Our sterilizers are also used in laboratories, in the pharmaceutical and other industries, as the additional programs enable them to sterilize medical solutions, microbiological cultures and mediums.



Key features



  • All sterilizer models are double-door versions.
  • Hinged door with automatic locking device.
  • Rectangular chamber, completely made of stainless steel AISI304.
  • High effective vacuum pump.
  • 5 integrated sterilization programs and wide range of customizable ones, allowing to select sterilization time and temperature, drying and cooling.
  • 2 test programs (Leak test and Bowie-Dick test for control of steam penetration into porous materials).
  • A wide range of parameter adjustment is available for each program.
  • Colour touch screen display indicating in real time.
  • Output of sterilization report on the built-in printer.
  • Chamber door cannot be opened when chamber is pressurized.
  • Two chamber doors cannot be opened simultaneously.
  • A cycle cannot start if the door is open or not properly locked.



Main Parameters



Model

MD-1.5

Door number

Double door

Door type

Motorized Hinge Door

Chamber volume

1500 liters

Chamber Size

680*1180*1870mm

Overall Size

1450*2000*2210mm

Net Weight

2150kg

Steam

50Kg/cycle

Water

150Kg/cycle

Power(KVA)

4.5KVA

Main parts

Stainless steel cart and trolley

Pneumatic valves

PLC with touch screen control

micro-printer recorder



Programs



Test programs: Bowie & Dick test, vacuum test.

Working programs:  Multiple customizable programs for textiles, instruments, rubbers,  culture medium and liquids in unsealed bottles.



Main adjustable parameters



  Sterilization temperature rage: at 105°C to 134°C

  Sterilization time rage: 0---99 minutes

  Vacuum times: 0---9 times

  Drying time: 0---99 minutes



Multiple adjustable parameters to ensure user’s customized programs are available, accurate  and perfect sterilization effect.



Cycles



Cycle No.

Cycle Name

Further Details

1

Instruments/Tools

3 times Vacuum, expose temperature 132℃, expose

time 8 min, drying time 5 min.

2

Clothing

3 times Vacuum, expose temperature 121℃, expose

time 15 min, drying time 25 min.

3

Liquid

15 min exchange, expose temperature 121℃, expose

time 15 min, cooling time 25 min.

4

B-D Test

3 times Vacuum, expose temperature 134℃, expose

 time 4 min, drying time 3 min.

5

Vacuum Leak Test

Test the chamber connecting parts’ tightness effect.

It’s important to ensure the sterilization effect.

6

User Programmable

 All preset parameters can be resettable; Multiple

customized programs can be set and stored by user.



Built in Printer Hospital CSSD  Pass Through Autoclave With Hinge Door

Built in Printer Hospital CSSD  Pass Through Autoclave With Hinge Door



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
