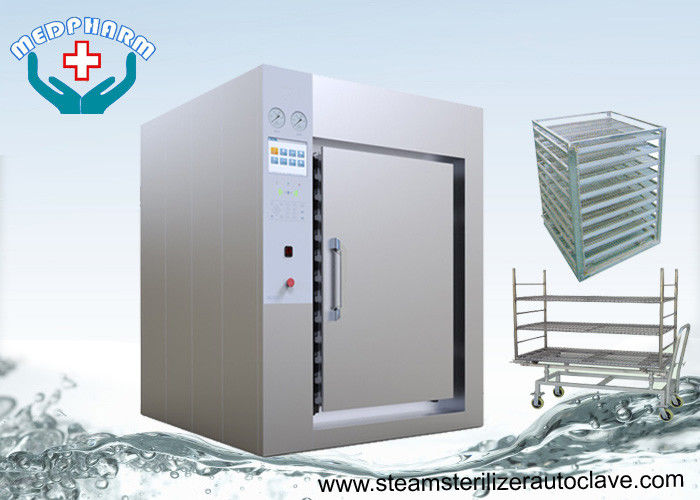

SS316L Chamber Steam Pass Through Autoclave With PT-100 Temperature Sensor

China SS316L Chamber Steam Pass Through Autoclave With PT-100 Temperature Sensor supplier

Large Image :  SS316L Chamber Steam Pass Through Autoclave With PT-100 Temperature Sensor

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MDL-0.6

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Chamber Material: 316l Stainless Steel Application: Bio-Safety Laboratories
Water Supply: Water Ring Vacuum Pump Steam Supply: Built-In Steam Generator Of SS304
Sterilization Agent: Saturated Steam Safety Design: Safety Door Locking System



SS316L Chamber Steam Pass Through Autoclave With PT-100 Temperature Sensor



Key Features



1. Hinged door with automatic locking

2. Temperature range: 105°C - 134°C

3. Lower operating cost

4. Delicate Heating With Steam

5. Water Ring Vacuum Pump

6. 0.22 Micron Air Filter

7. Sterilization agent: Saturated steam

8. Chamber : SS 316L Quality and Heating Jacket : SS 304

9. Micro-printer recorder

10. With stainless steel trays

11. Special design for BSL3 and BSL4 laboratories



Specifications



Model

MDL-0.24

MDL-0.36

MDL-0.6

Chamber Size(W*H*D mm)

600*600*670

600*600*1000

610*910*1170

Overall Size(W*H*D mm)

1500*1800*1010

1500*1800*1340

1500*1900*1510

Steam(Kg/cycle)

20

25

30

Water(Kg/cycle)

30

40

60

Power(KVA)

2

2

3

Applications

 Sterilization of Liquids

 Unwrapped instruments and glassware

 Wrapped instruments, packs and utensils



Reliable Design



• The chamber is made of 316L stainless steel; steam jacket, door internal side and the steam generator made of 304 stainless steel

• Efficient insulation for the chamber, door and steam generator

• Hinge door moved by electric motor

• Steam driven chamber gasket made of silicon as single piece

• Carefully chosen high quality valves, sensors and transmitters for a problem free and safe operation

• Pneumatically controlled valves used in the steam lines which have longer service life than electrically operated valves.

• Steam jacket surrounding the chamber for homogenous heating and preventing condensation on the loads.



Steam Generator



A steam generator is incorporated in the sterilizer housing providing substantial benefits:



  • No heating elements and no reservoir for dirty water in the chamber
  • With stand-by pre-heating option, only 10 min. heating time to 121° C with an empty chamber
  • Improved removal of air from the empty chamber via pulsed heating (rapid attainment of optimal steam atmosphere, even without a vacuum)
  • Accuracy better than ± 1.0° C with empty chamber
  • Quicker cooling as neither the hot water in the chamber nor the separate​ steam generator need to be cooled
  • After cooling, steam is immediately available for the next sterilization run.



Innovative Automatic Safety Door Lock



The door locking system on this double door autoclave, is temperature dependent and adheres to national and international safety standards.



The door remains locked as long as there is excess pressure in the chamber. The lid, like other parts of the pressure vessel and housing, is made of stainless steel.



The modern design faceplate, which also contains the control panel, display and part of the control technology, is made of heat resistant and insulated plastic.



There is no risk of the autoclave operator coming into contact with hot components.


SS316L Chamber Steam Pass Through Autoclave With PT-100 Temperature Sensor

SS316L Chamber Steam Pass Through Autoclave With PT-100 Temperature Sensor





Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
