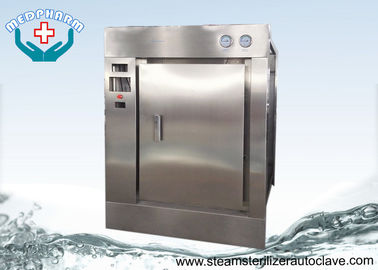

Colored Touch Screen Front Loading Veterinary Autoclave Compliance With cGMP Regulations

China Colored Touch Screen Front Loading Veterinary Autoclave Compliance With cGMP Regulations supplier

Large Image :  Colored Touch Screen Front Loading Veterinary Autoclave Compliance With cGMP Regulations

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MDL-0.24

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Door Type: Hinged Door With Automatic Locking Control Panel: User-Friendly HMI
Display Panel: Color Touch Screen Configuration: Front Loading
Test Program: B-D Test,Vacuum Test Application: For Animal Care



Colored Touch Screen Front Loading Veterinary Autoclave Compliance With cGMP Regulations





Descripition



  • Chamber capacity 240 liters
  • Chamber electrolytic polishing
  • Hinged door with automatic locking
  • User-friendly HMI
  • Minimal media consumption
  • 5.7 inch color touch screen
  • Safety-stop system for door movement in case of obstruction



General Safety Features



  • Double Independent Monitoring: The combined digital and mechanical monitoring  provides a cross reference and guarantees accurate results. The operator has  two independent means to monitor temperature and pressure.
  • Safety Valves: Both the chamber and the jacket are equipped with safety valves – if the pressure exceeds the allowed limit the safety valves will discharge.
  • Built-in Steam Generator Safety: A water level monitoring system maintains a constant  water level and ensures safe operation of the heaters.
  • Emergency Shut-Off: Easily accessible emergency switches for immediate and safe shut down.



Animal Care Applications



The autoclave is designed to cover a large field of applications for Animal Care and laboratories.



Specifications



Model

MDL-0.24

Door number

Double doors

Door type

Motorized Hinge Door

Chamber volume

240 liters

Chamber Size

600*600*670mm

Overall Size

1350*1800*1010mm

Net Weight

700kg

Steam

20Kg/cycle

Water

30Kg/cycle

Power(KVA)

2KVA

Sterilization temperature rage

105°C to 134°C

Sterilization time rage

 0---99 minutes

Vacuum times

 0---9 times

Drying time

 0---99 minutes

Applications

For Animal Care



Materials Options



1. Chamber Options

    316L Stainless Steel

2. Jacket Options

    Carbon Steel, 304L Stainless Steel, 316L Stainless Steel

3. Plumbing Options

    316L Stainless Steel



Properly Sizing An Autoclave For Your Animal Lab



Steam sterilization is routinely used in animal laboratories for two reasons:



 1) To sterilize animal cages in order to create a pathogen-free housing environment

 2) To properly dispose of harmful waste products.





Since autoclaves are essential for everyday laboratory operation, it is important to select a

chamber size with enough capacity to meet the lab’s demand for cage and waste processing.Under-sizing the autoclave will leave it insufficient to meet the lab’s demands while an oversized autoclave takes up valuable lab space and carries a higher upfront cost.



An animal lab facility should consider two primary factors before making a sterilizer purchasing decision:

  • The facility’s Animal Biosafety Level requirement
  • The number of animal cages that need to be processed





Colored Touch Screen Front Loading Veterinary Autoclave Compliance With cGMP Regulations

Colored Touch Screen Front Loading Veterinary Autoclave Compliance With cGMP Regulations



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
