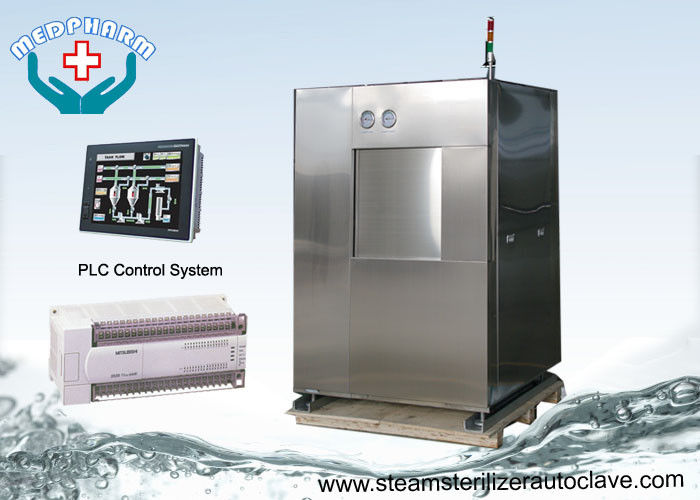

Laboratory 316L Chamber Pass Through Sterilizer With Ink Panel Printer

China Laboratory 316L Chamber Pass Through Sterilizer With Ink Panel Printer supplier

Large Image :  Laboratory 316L Chamber Pass Through Sterilizer With Ink Panel Printer

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO
Model Number: MDB-0.11V / MD-0.24V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Control System: PLC Controller Door Type: Double Automatic Sliding Doors
Safe Feature: Emergency Stop Button Printer: Ink Panel Printer
Application: Laboratory Chamber: Square Or Rectangular , 316 Stainless Steel



Laboratory 316L Chamber Pass Through Sterilizer With Ink Panel Printer



Description



The pass through Lab autoclave is a general purpose, compact designed vacuum steam sterilizer which has been specifically designed for the needs of today’s shared laboratory.



All models come with the following standard features:



  •     Easy to use color touch screen PLC controller.
  •     Emergency stop button
  •     Chamber / jacket steam pressure gauges
  •     Adjustable / lockable castors for easy installation
  •     Stainless Steel fully jacketed rectangular chamber
  •     Internal base shelf and four position rack
  •     Vertical sliding door
  •     Temperature in degrees Celsius / Fahrenheit
  •     Pressure in PSI or Bar
  •     Recessed or external cabinet side panels
  •     Ink panel printer
  •     A liquid ring vacuum pump as standard
  •     15+ programmable cycles
  •     Fine polished chamber



Specifications



Sterilization temperature rage: 105 --- 134°C

Sterilization time rage: 0---99 minutes

Vacuum times: 0---9 times

Drying time: 0---99 minutes

Bowie & Dick test, vacuum test.



Model Chart



Model

Chamber Size

Overall Size

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg/cycle

Kg/cycle

KVA

MDB-0.11V

400*400*700

1000*1800*1040

14

15

2

MDB-0.16V

400*400*1000

1000*1800*1340

16

20

2

MDB-0.20V

400*400*1300

1000*1800*1640

18

25

2

MDB-0.24V

600*600*670

1200*2000*1010

20

30

2



Applications Include The Sterilization Of:



  •     Wrapped and unwrapped hard goods
  •     Porous and non-porous hard goods
  •     Liquids in unsealed open containers
  •     Biohazard waste
  •     Animal feed
  •     Animal bedding



Chamber



The sterilizer chamber is made of 316 L grade stainless steel, jacket and door are made from solid, high quality type AISI 304 stainless steel. Internal surfaces are treated with glass blasting to facilitate cleaning.



Door Construction



A motor operated vertical sliding door will be operable from the touchpad push button.



To close door, depress/hold door button. If door button is released while door is closing, door

reverses direction and opens.



In the open position, the insulated door will be secured behind panel preventing the operator from contact with hot surfaces. An interlock will prevent cycle start unless the door is fully closed and secured.



Steam Source



Steam will be from an in-house steam source in the quantity and quality specified.



Optional electric steam boiler, clean steam boiler or steam-to-steam generator may be specified.



Laboratory 316L Chamber Pass Through Sterilizer With Ink Panel Printer

Laboratory 316L Chamber Pass Through Sterilizer With Ink Panel Printer



Brochure load down from here



Medpharm medical large steam autoclave brochure.pdf
