Product Details:
Payment & Shipping Terms:
|
| Configuration: | Compact | Application: | Emergency Rooms |
|---|---|---|---|
| Chamber Volume: | 240 Liters | Chamber Material: | AISI 316 |
| Panel Construction: | Display Panel | Feature: | User Friendly Control Panel |
| High Light: | sterilization equipment for hospital,sterilising hospital equipment |
||

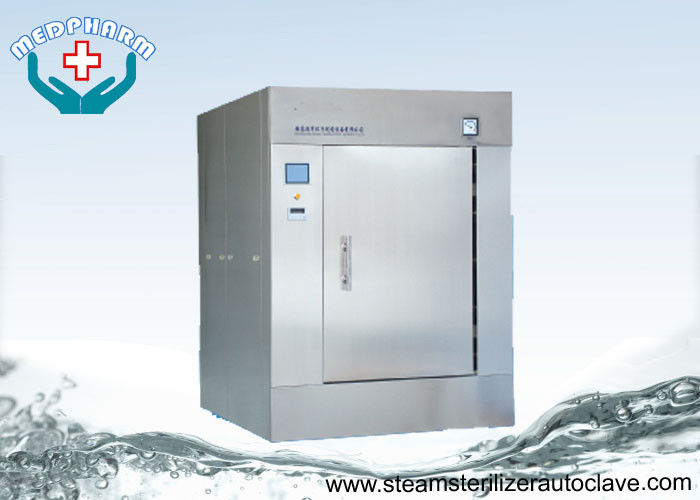

Compact User Friendly Control Panel Cssd Sterilizer For Hospital And Clinic
Main Characteristics
User setting: The autoclave steam sterilizer allows the equipment to be set at the purchase, searching for the best adequacy of the equipment to each user’s needs. User accessible programming: User-configurable parameters through command interface by password.
Door: Motorized Hinge Door, manually driven with no physical effort. The equipment can be set with single door or double door for pass-through installation.
Chamber: built with double wall ,made of AISI 316 stainless steel.
Pipeline: Existing pipeline welded in the chamber, in AISI 316 stainless steel.
Air-tightness: hospital detachable, facilitating the transportation through narrow corridors during the transportation and installation process.
User friendly control panel
Command panel: Located at a height to facilitate the visualization and operation on the loading side of the sterilizer, containing micro-processed command interface, on/off power switch, start button,
micro-computer for vacuum and inner chamber pressure reading, micro-computer for external chamber pressure reading, all of them with glycerin to allow stable readings and emergency button. The panel also has an optional printer.
Secondary panel: On the unloading side, in the case of double-door equipment, it has indicative lamps, micro computer with glycerin for inner chamber vacuum and pressure reading, selector switch to open the door and emergency button.
Main Parameters
|
Model |
MD-0.24
|
|
Door type |
Double door type |
|
Door open method |
Motorized Hinge Door |
|
Chamber and jacket material |
SS316L / SS304 |
|
Chamber volume |
240 liters |
|
Chamber Size |
60*60*67cm |
|
Overall Size |
135*180*101cm |
|
Net Weight |
700kg |
|
Steam |
20Kg/cycle |
|
Water |
230Kg/cycle |
|
Power(KVA) |
2KVA+12KW for steam generator |
|
Sterilization temperature rage |
105°C to 134°C |
|
Sterilization time rage |
0---99 minutes |
|
Vacuum times |
0---9 times |
|
Drying time |
0---99 minutes |
|
Main parts: 1.SS304 built-in steam generator 2.Touch screen display 3.High effective liquid-ring vacuum pump 4.With stainless steel trays 5. micro-printer recorder |
|
Application
Sterilizer designed to meet the most critical sterilization parameters and normative parameters
of manufacture and security, being able to sterilizer and dry materials of density such as surgical
fields and clothes, packed or unpacked instruments and tools, glasses, gloves, syringes, rubbers,
liquids in open vials with calculation, mainly necessary in quality control laboratory with specific
program for Bowie & Dick Test and Leak Test. Recommended for use in hospitals, emergency
rooms and outpatient care centers,medical clinics, medical analyses laboratories .
